Dual I/O modules per enclosure

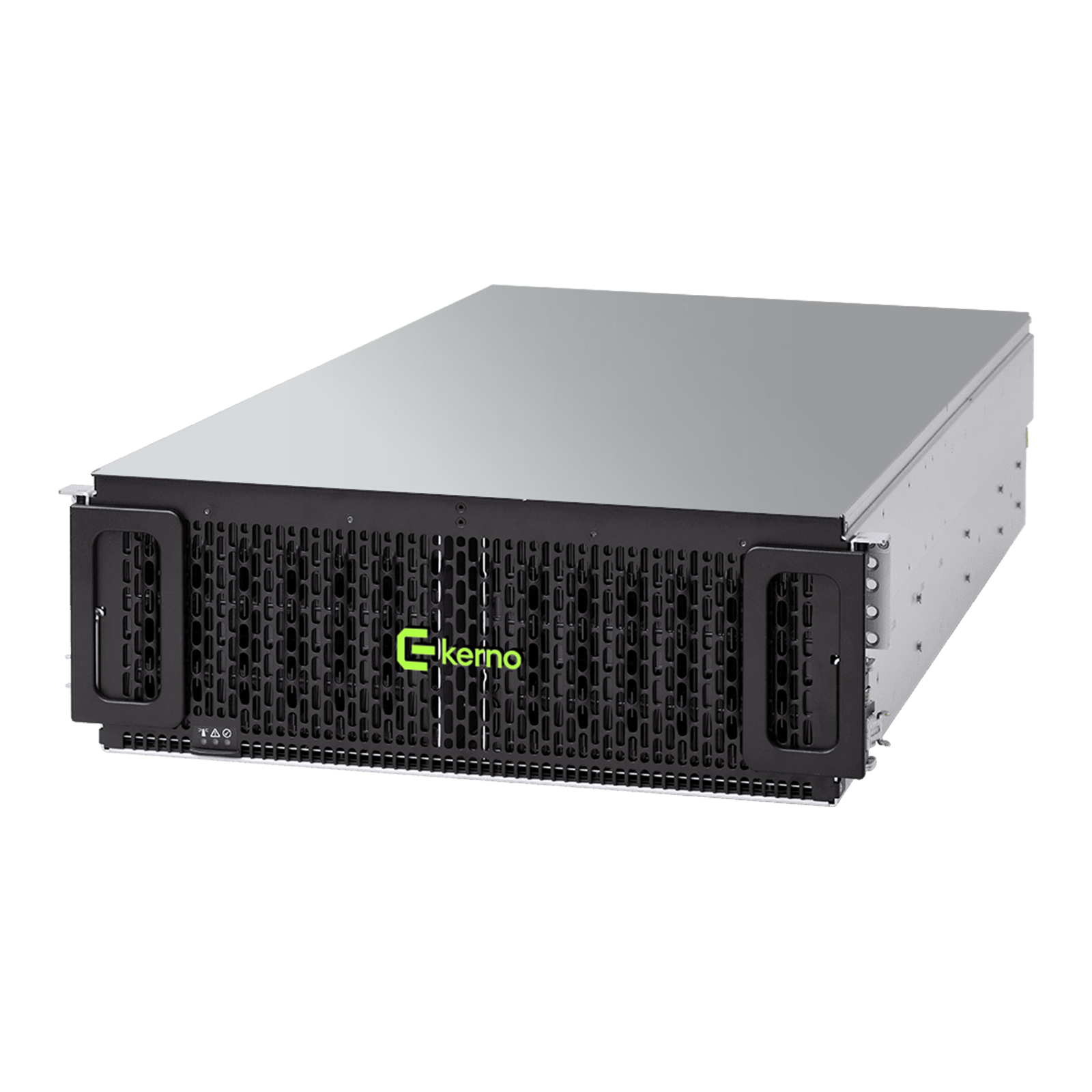

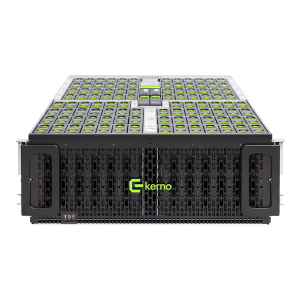

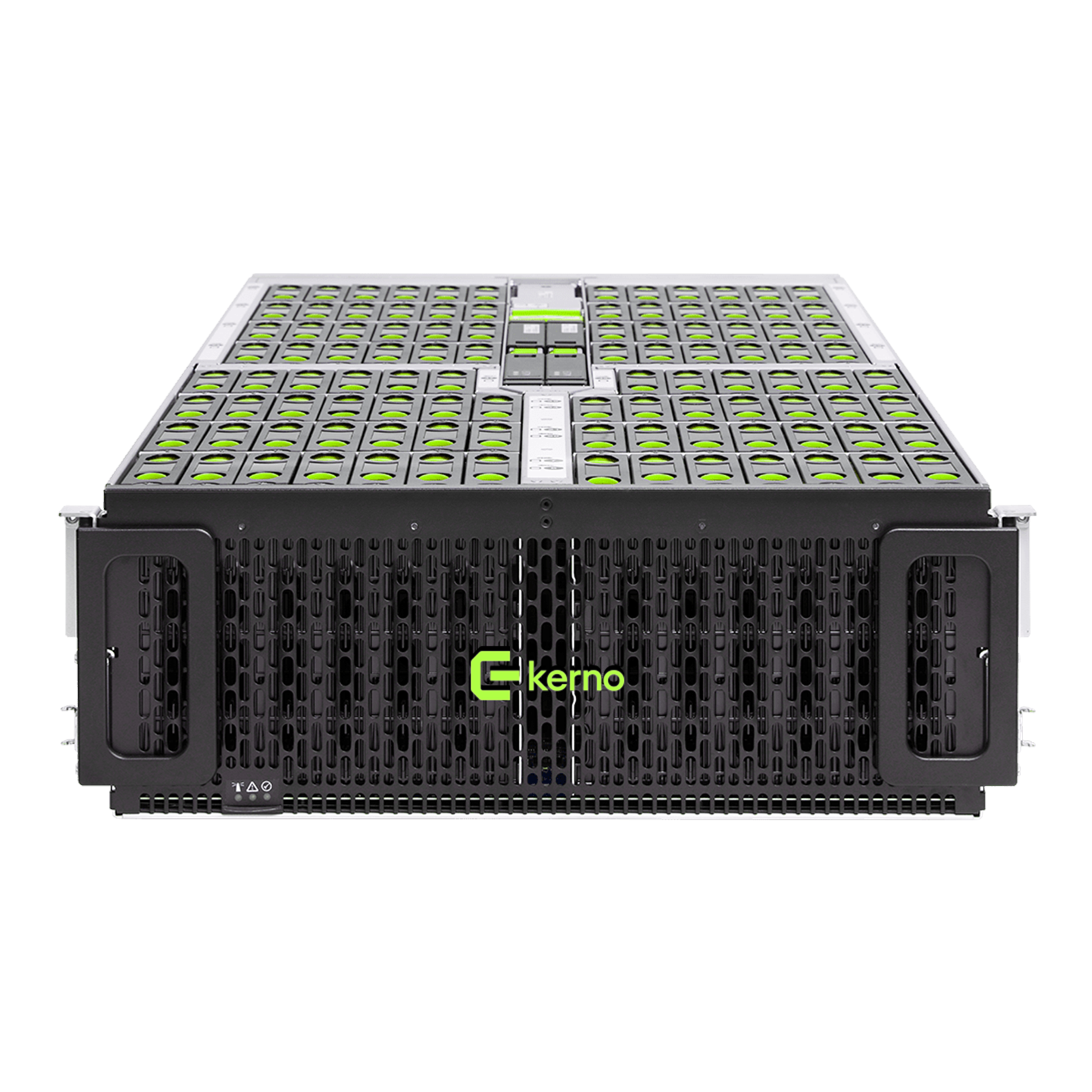

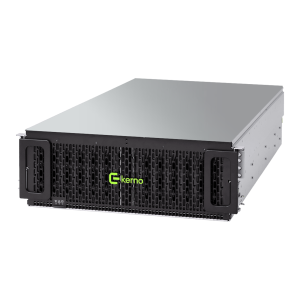

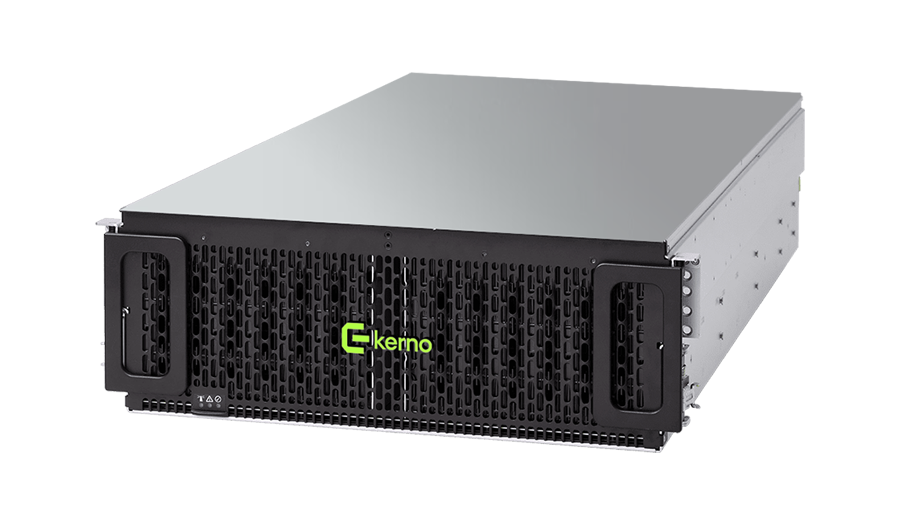

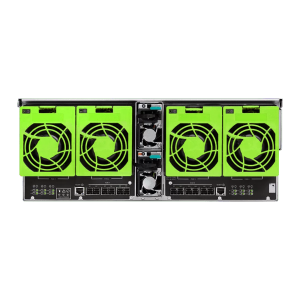

OTAON K10-400X
June 2026 • Version 02
Max drives per unit:
102
Max drives per unit:
Dual-port SAS for high availability or single-port SATA for low cost
Max capacity per unit:
Up to 3.26PB
102 x 32TB SMR, 3.5 SAS/SATA & 2.5 SAS SSD
Expansion:
Up to 4 units may be daisy-chained for a total raw capacity of 13.05PB
OTAON K10-400L Overview
Features

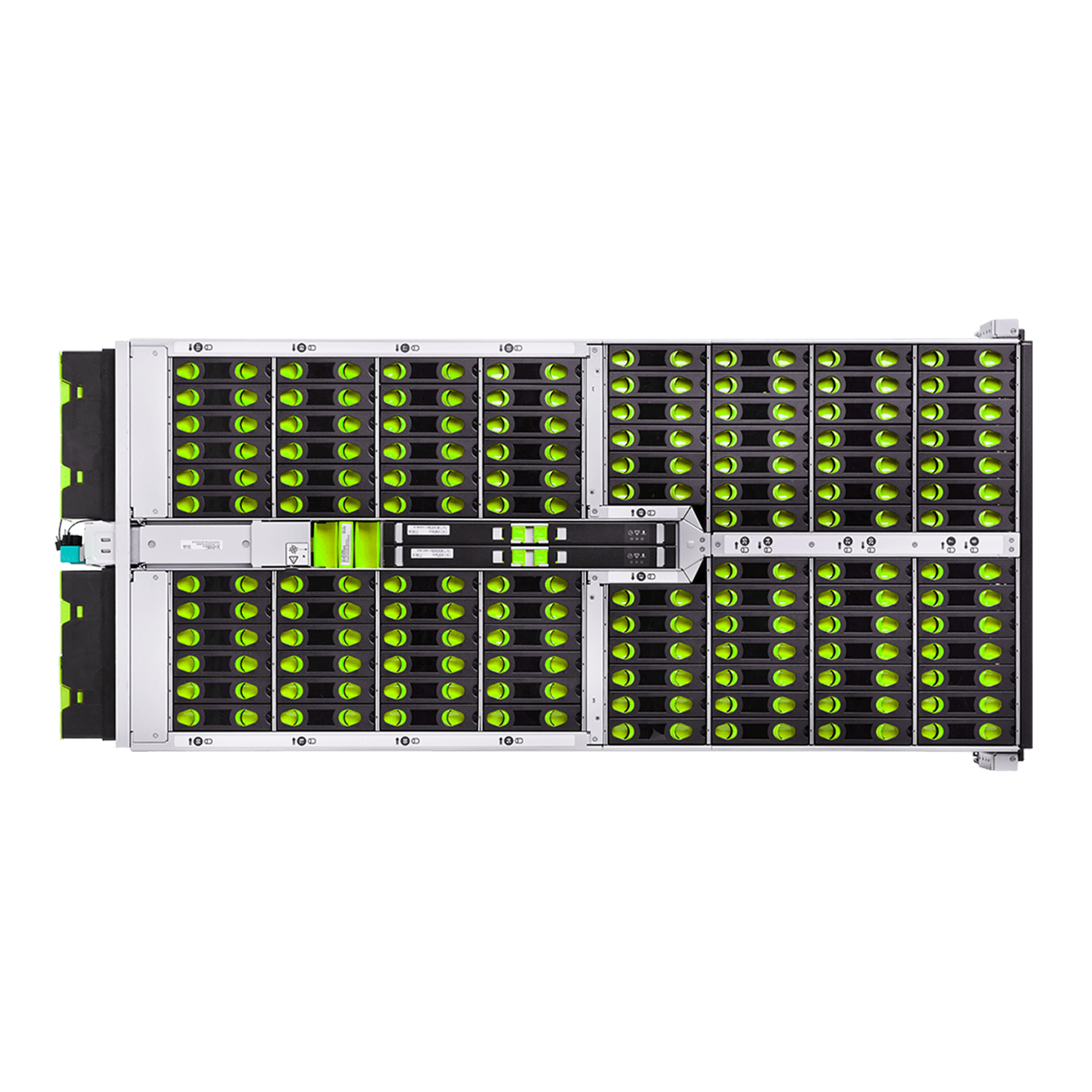

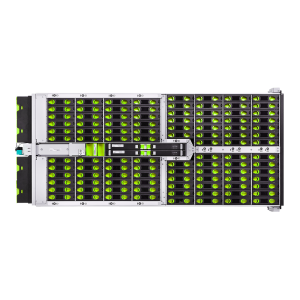

Up to 102 HDDs (SAS or SATA), with the combination 24 SSDs + 78 HDDs for customers who want massive shared storage
Up to 3.26PB of raw storage in 4U and up to 4 units may be daisy-chained for a total raw capacity of 13.05PB
Optimized design minimizes vibration, ensuring consistent performance under heavy workload
Enhanced cooling architecture improves airflow for reliable operation and thermal efficiency
Choose dual-port SAS for high availability or single-port SATA for low cost
Enterprise-grade redundant and hot-swappable drives, PSUs, IO modules, HEMs, and fans
Rack-mounted top cover for quick and easy service
Designed for high density and flexibility
Designed for next-generation disaggregated and software-defined storage (SDS), the platform delivers high-density capacity in an efficient form factor. It provides an optimal balance of performance, capacity, reliability, and energy-efficient operation.
Designed for the enterprise and cloud
Designed for enterprises, storage OEMs, and cloud service providers, the Hybrid Storage Platform delivers high-density shared storage with the flexibility to optimize capacity, performance, and cost.
Our Approach to Collaboration with Your Team
Understand unique customer requirements
Commitment to creating trust and long-term partnerships
Ensuring end-to-end transparency, security and compliance at every step
Enabling direct access to Kerno’s team of founders
IT hardware manufactured in the UAE
First enterprise-grade IT hardware manufacturer in the UAE
Manufactruring servers & other microelectronics solutions for the UAE
Best-in-class time for delivery
Leveraging Kerno's resilient supply chain with traceable Tier-1 components
Customer support fully based in the UAE
Reducing response time
Local R&D and production engineering team
Delivering engineering excellence in the UAE for the UAE
Intellectual Property (IP) rights
Fully owned by Kerno
State-of-the-art SMT line and high-end optical inspection machinery
Producing high tech solutions locally at Kerno's own manufacturing plant in the UAE
We look forward to understanding your goals & requirements
Feature
Specifications
Controller
Host interface
Up to 12 x 24Gb/s SAS-4 host connections
Management
SCSI Enclosure Services Redfish (out of band, via RJ45)
Maximum system configuration
Up to 4 units may be daisy-chained for a total raw capacity of 13.05PB
Device support
Dual-port 12Gb/s SAS HDDs/SSDs & 6Gb/s SATA HDDs/SSDs
Max drives per enclosure
102
Hot-swappable components
Drives
PSUs
IO modules
HEMs
fans
Dimensions
Height: 174.5 mm / 6.87 in
Width: 447.0 mm / 17.60 in
Depth: 1044.2 mm / 41.11 in
Depth with CMA: 1191 mm / 46.89 in
Weight
Product without drives: 47 kg / 103.6 lbs
Product with 102 HDDs: 121.02 kg / 266.8 lb
Power requirements — AC Input:
Input power requirements
Titanium: Dual 100-240V AC
Max power output per PSU
1600W
Environmental/temperature ranges:
Altitude
Operating: -300m to 3048m / -984 ft to 10,000 ft
Temperature
Operating: 5°C to 35°C
Non-operating: -40 to 70°C
Humidity
Operating: 5 to 85% relative humidity
Sound power
Operating: <7.2Bels @ 23±2°C
Cooling

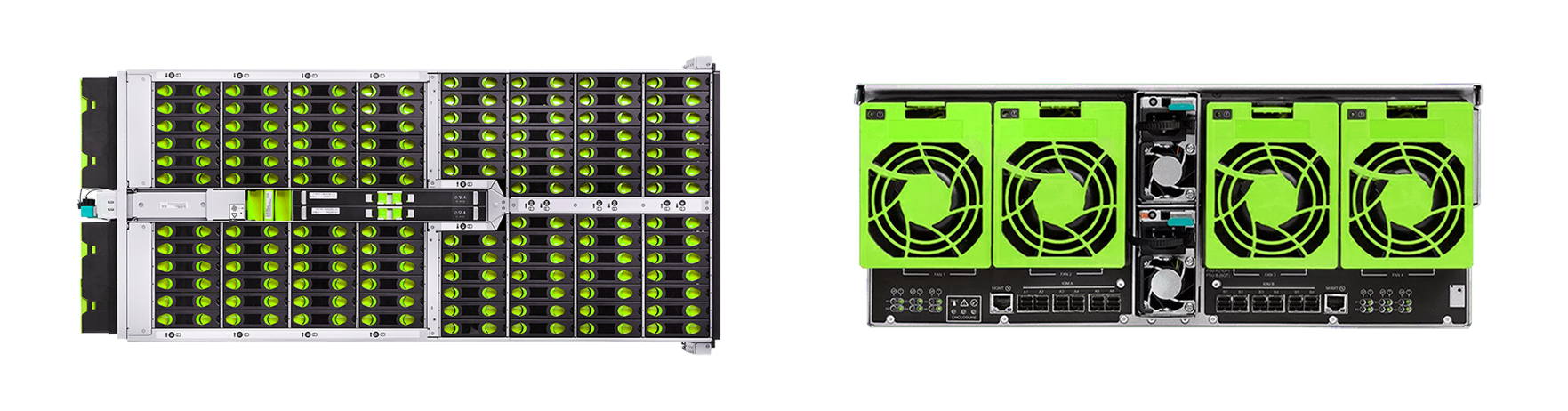

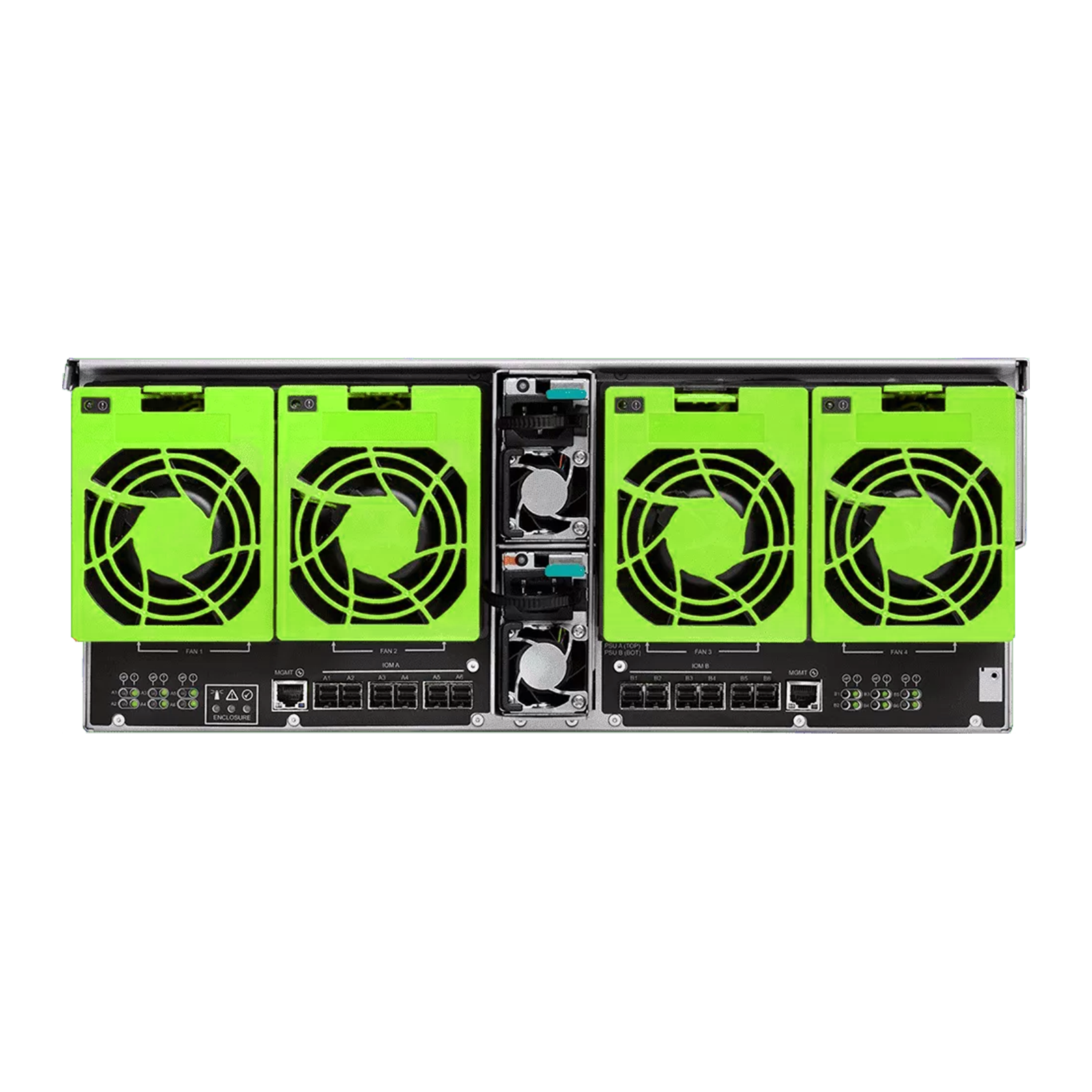

4 main enclosure fans front-to-rear system cooling with zero-loss backflow prevention 1 IO module fan Dual PSUs with built-in fans
We look forward to understanding your goals & requirements
Your Customer Support Options
| Cruise | Performance | Full Throttle | |
|---|---|---|---|
| Onsite Support | |||
| Unlimited 24×7×365 help desk support | |||
| Access to replacement spare parts | |||
| Onsite labor (part replacement) | Business hours (8:00–17:00 local time, Monday–Friday), next business day response | 24×7 onsite service with a 4-hour response for Severity 1 incidents | |
| Hardware replacement assistance | Customer performs replacement | Engineer performs replacement onsite | Engineer performs replacement onsite |
| Secure site coverage (keep failed HDDs/SSDs) | Optional | Optional | Optional |
| Advanced hardware troubleshooting | Remote guidance only | ||
| RMA Management | Customer performs packaging and returns shipment using a prepaid label | Service provider handles logistics and return processing | Service provider handles logistics and return processing |
| Prepaid return shipping | |||
| Coverage hours | 24×7 help desk; replacement performed by customer | 8:00–17:00 local time, Monday–Friday | 24×7×365 |
| Target response time | Best-effort remote assistance | Next business day | 4 hours (critical incidents) |
