12 x 100GbE ports

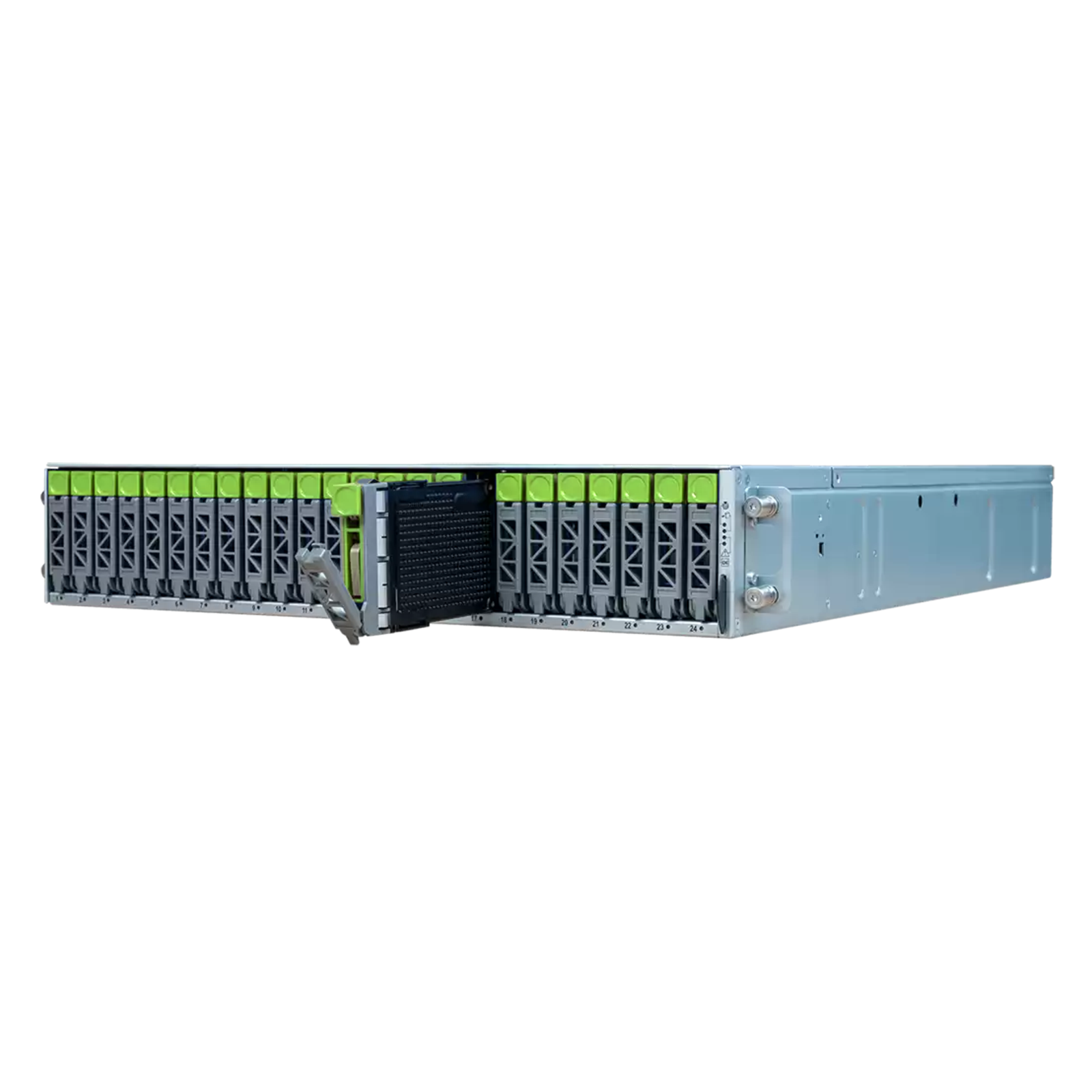

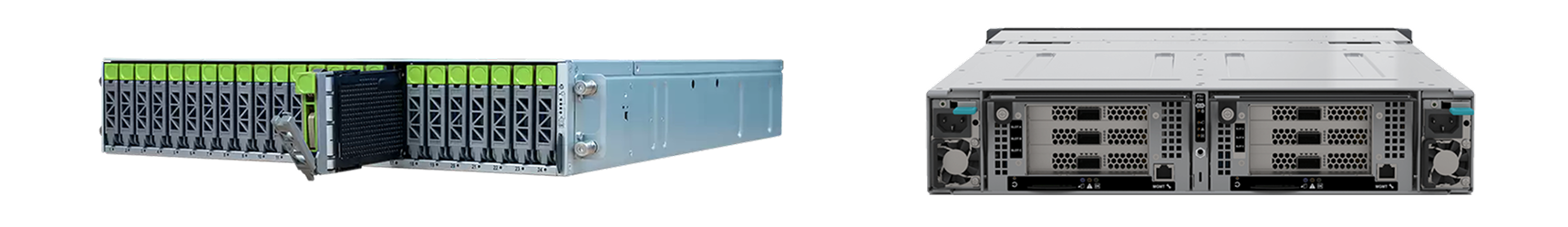

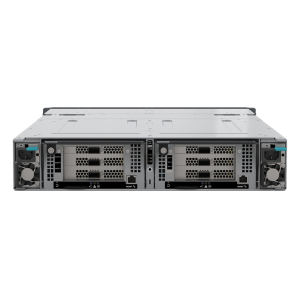

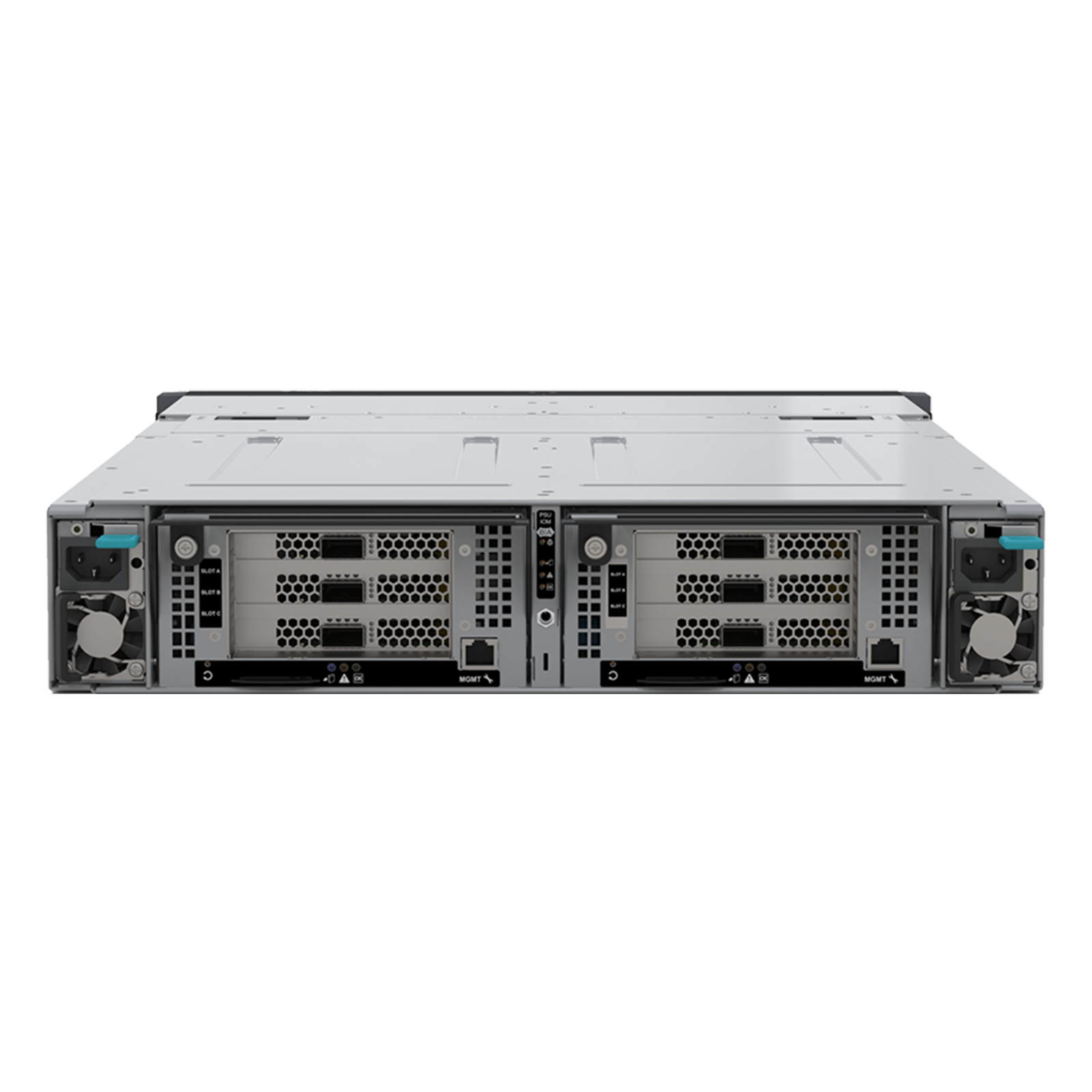

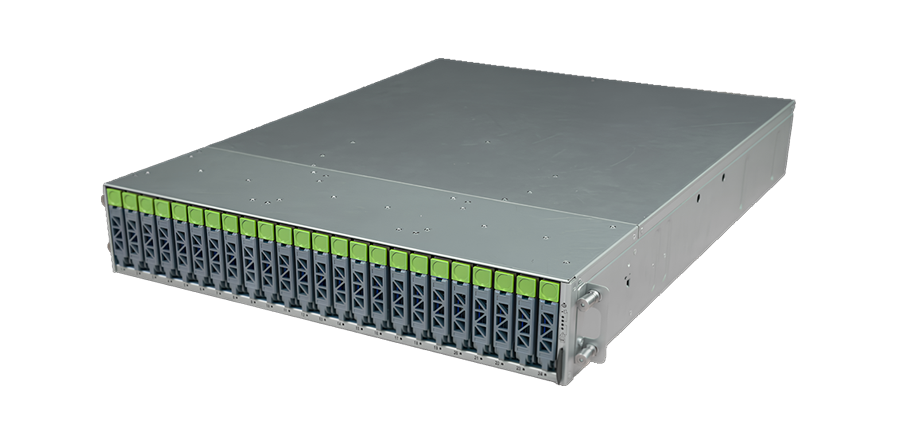

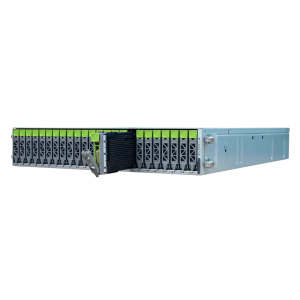

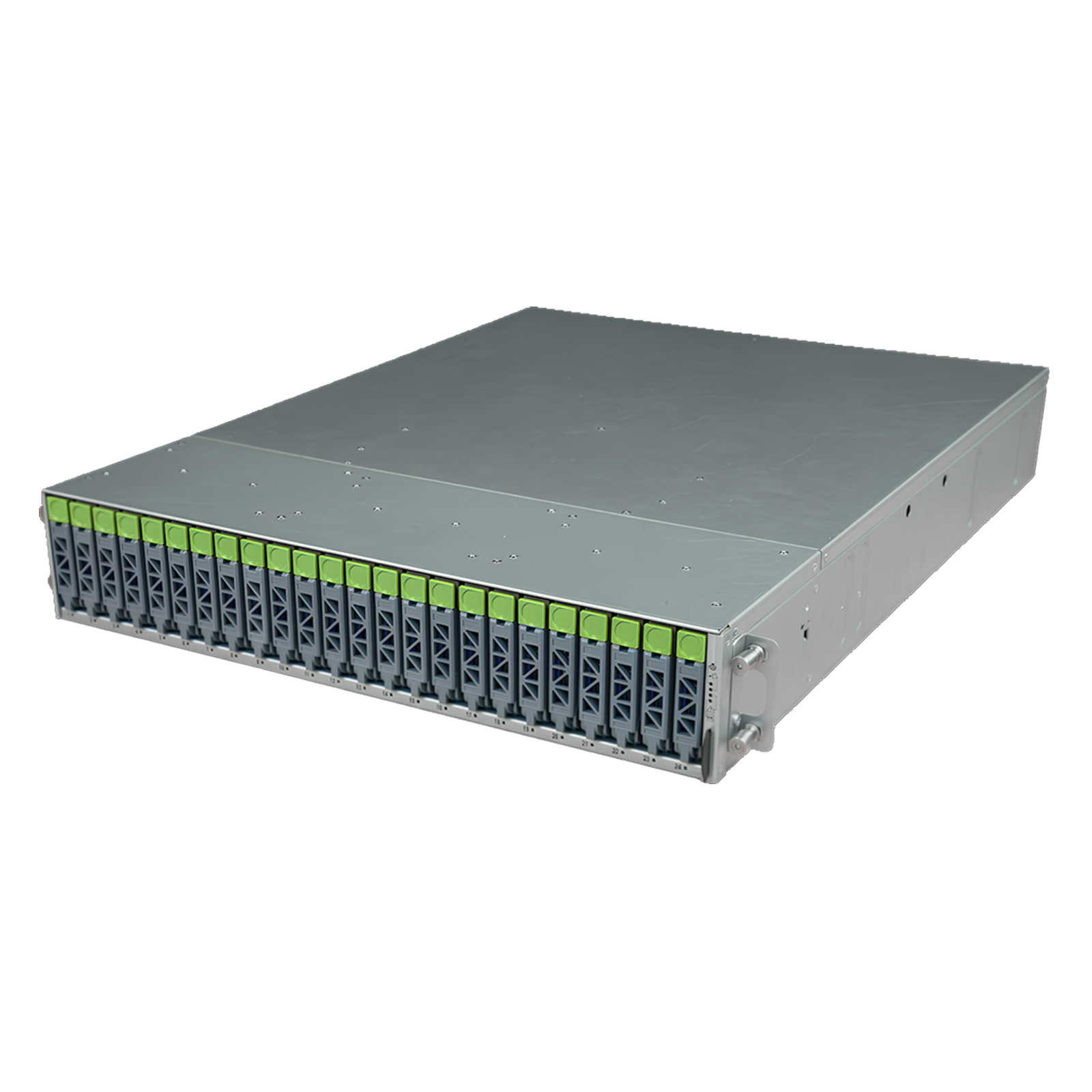

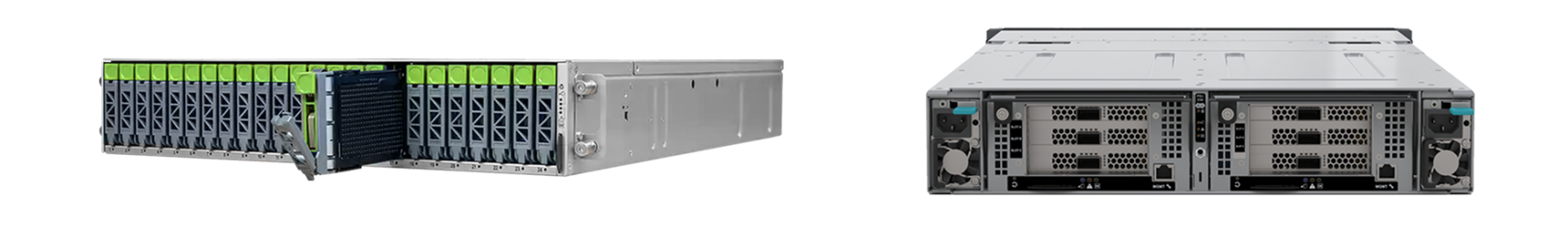

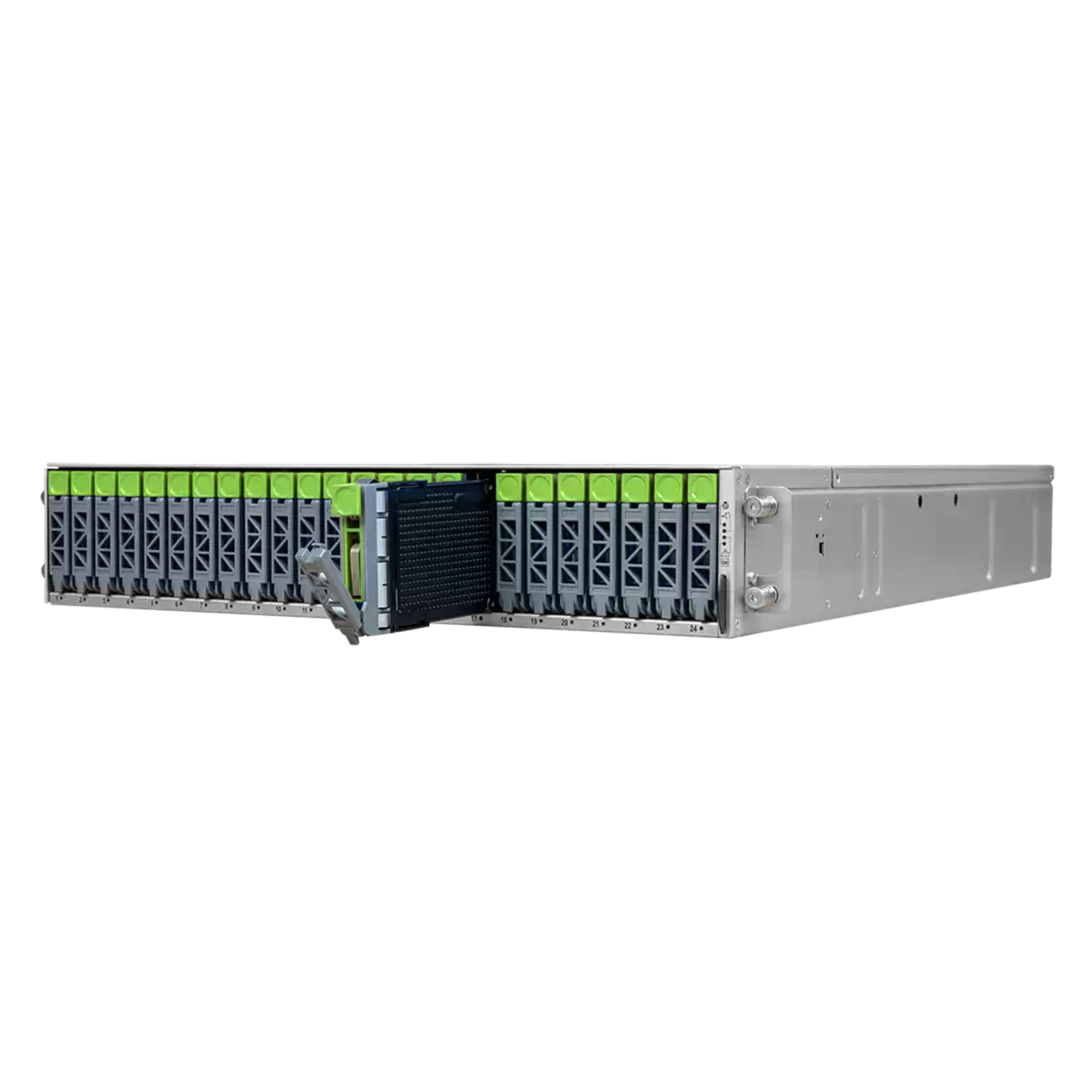

OTAON K10-202M
June 2026 • Version 02
Max drives per unit:
24
Device support:
NVMe-oF storage platform with 12 x 100GbE ports
Max capacity per unit:
Up to 1474.56TB of low latency dual-port SSDs in 2U 24-bay platform
Expansion:
Capacity can be expanded indefinitely by scaling out with additional systems connected through the NVMe-oF fabric
OTAON K10-202M Overview
Features
Up to 1474.56TB of low latency Dual Port SSDs in 2U 24-bay platform
RDMA over Converged Ethernet (RoCE) or Transmission Control Protocol (TCP) connectivity
RESTful API support for simplified management
N+2 fan redundancy eliminates the need for hot-swappable fan modules
Device sharing optional configuration utilizes NVMe Non-Transparent Bridging to allow all Ethernet ports to access any SSD
Industry-leading 5-year limited warranty
Unburden IT infrastructure
With performance comparable to direct attached storage, your infrastructure stays agile and responsive by reducing overprovisioning while maximizing value and efficiency.
Trusted technology
An integrated OTAON K10-202M adapter uses low power and delivers high performance.
Modern, high-performance storage
Fueling the next era of innovation and transforming how data powers discovery, intelligence, and performance across critical industries.
Our Approach to Collaboration with Your Team
Understand unique customer requirements
Commitment to creating trust and long-term partnerships
Ensuring end-to-end transparency, security and compliance at every step
Enabling direct access to Kerno’s team of founders
IT Hardware Manufactured in the UAE
First enterprise-grade IT hardware manufacturer in the UAE
Manufactruring servers & other microelectronics solutions for the UAE
Best-in-class time for delivery
Leveraging Kerno's resilient supply chain with traceable Tier-1 components
Customer support fully based in the UAE
Reducing response time
Local R&D and production engineering team
Delivering engineering excellence in the UAE for the UAE
Intellectual Property (IP) rights
Fully owned by Kerno
State-of-the-art SMT line and high-end optical inspection machinery
Producing high tech solutions locally at Kerno's own manufacturing plant in the UAE
We look forward to understanding your goals & requirements
Features
Specifications
Host interface
Management
ARM-based BMC
Maximum system configuration
Capacity can be expanded indefinitely by scaling out with additional systems connected through the NVMe-oF fabric
Device support
All Flash/ NVME-based SSD’s
Max drives per enclosure
24
Hot-swappable components
Dual IOMs
PSUs
N+2 fans
Dimensions
Height: 87.63 mm / 3.45 in
Width: 448.05 mm / 17.64 in
Depth: 711.2 mm / 28 in
Weight
Maximum 18.25 kg / 40.2 lbs
Power requirements — AC Input:
Input power requirements
Titanium 100-240VAC, CRPS, Hot Plug
Max power output per PSU
Titanium: 2 X 800W
Environmental/temperature ranges:
Temperature
Operating: 10°C - 35°C
We look forward to understanding your goals & requirements
Your Customer Support Options
| Cruise | Performance | Full Throttle | |
|---|---|---|---|
| Onsite support | |||
| 24 × 7 × 365 help desk support | |||
| Access to spare & replacement parts | |||
| Onsite part replacement response | Next business day 8 a.m. to 5 p.m. UAE time Monday to Friday | Response within 4 hours 24 x 7 onsite service for severity 1 incidents | |
| Hardware replacement support | Customer performs replacement | Kerno’s engineer replaces hardware onsite | Kerno’s engineer replaces hardware onsite |
| Secure site coverage (keep failed HDDs/SSDs) | Optional | Optional | Optional |
| Advanced hardware troubleshooting | Remote guidance only | ||
| RMA (Return Merchandize Authorization) management | Customer packs and returns shipment using Kerno’s prepaid label | Service provider handles logistics and return processing | Service provider handles logistics and return processing |
| Return shipping prepaid by Kerno | |||
| Support hours | 24 × 7 help desk; replacement performed by customer | 8 a.m. to 5 p.m. UAE time Monday to Friday | 24 × 7 × 365 onsite support |
| Target response time | Best-effort remote assistance | Next business day | 4 hours (critical incidents) |
