Dual I/O modules per enclosure
OTAON K10-200M
June 2026 • Version 02
Max drives per unit:
24
Device support:
Dual port 12Gb/s & 6Gb/s SAS drives
Max capacity per unit:
Up to 368TB
24 x 15.36TB, 2.5 SAS SSD
Expansion:
Dual host-connected enclosure with a maximum of 10 enclosures for a total of 240 drives
OTAON K10-200M Overview
Features

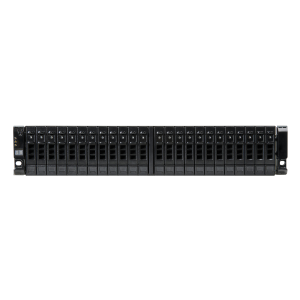

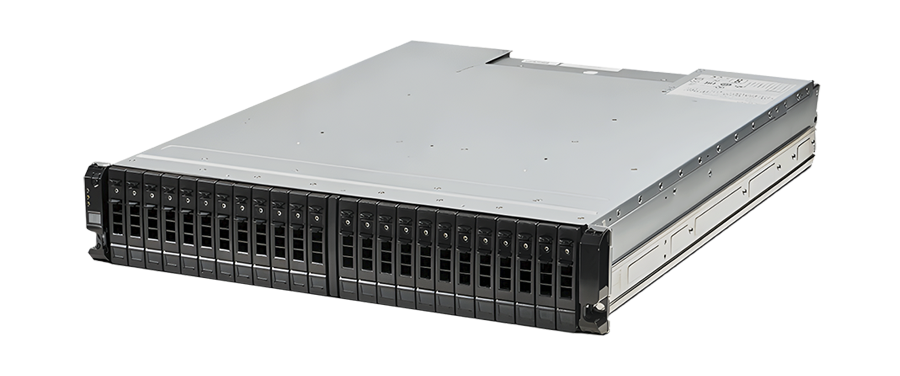

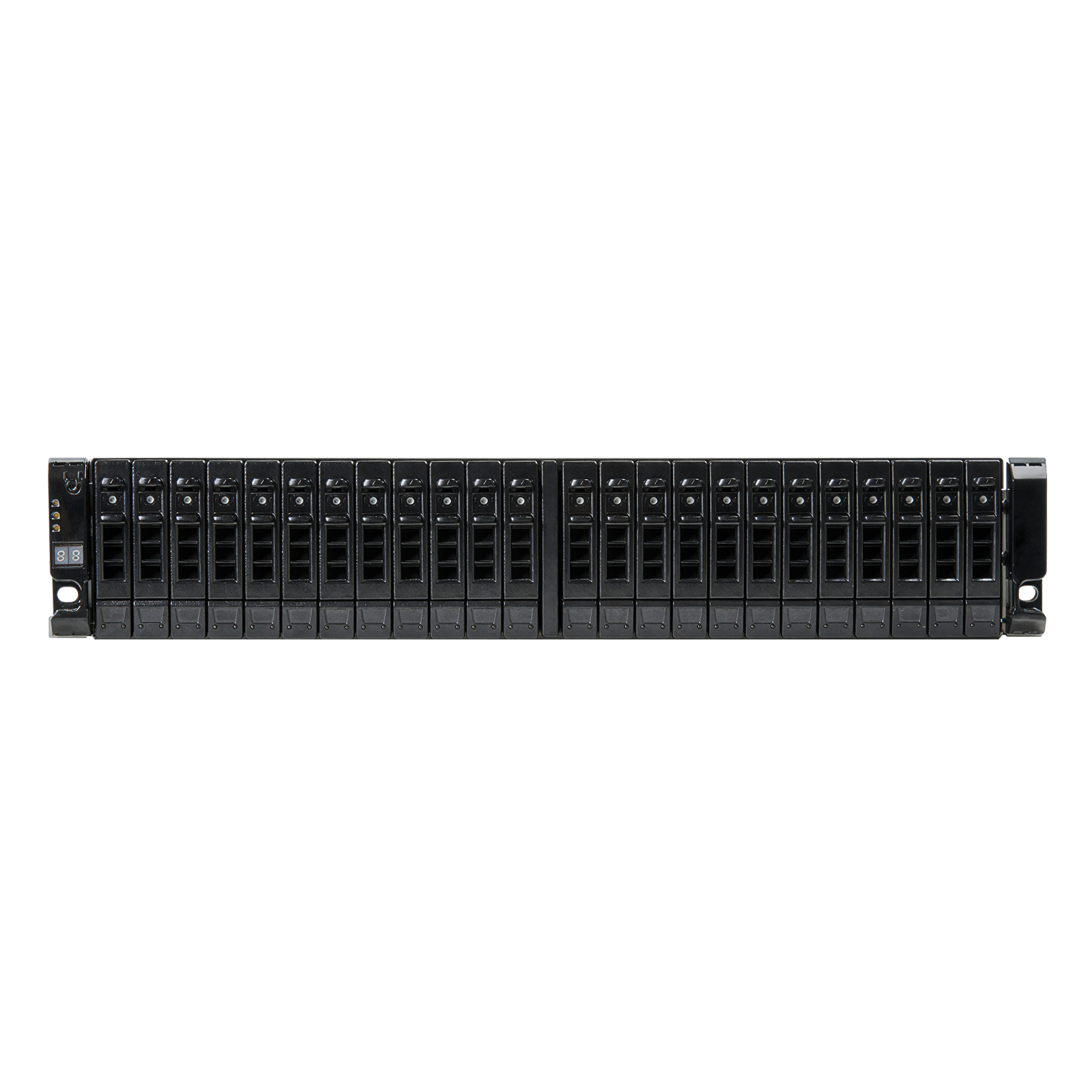

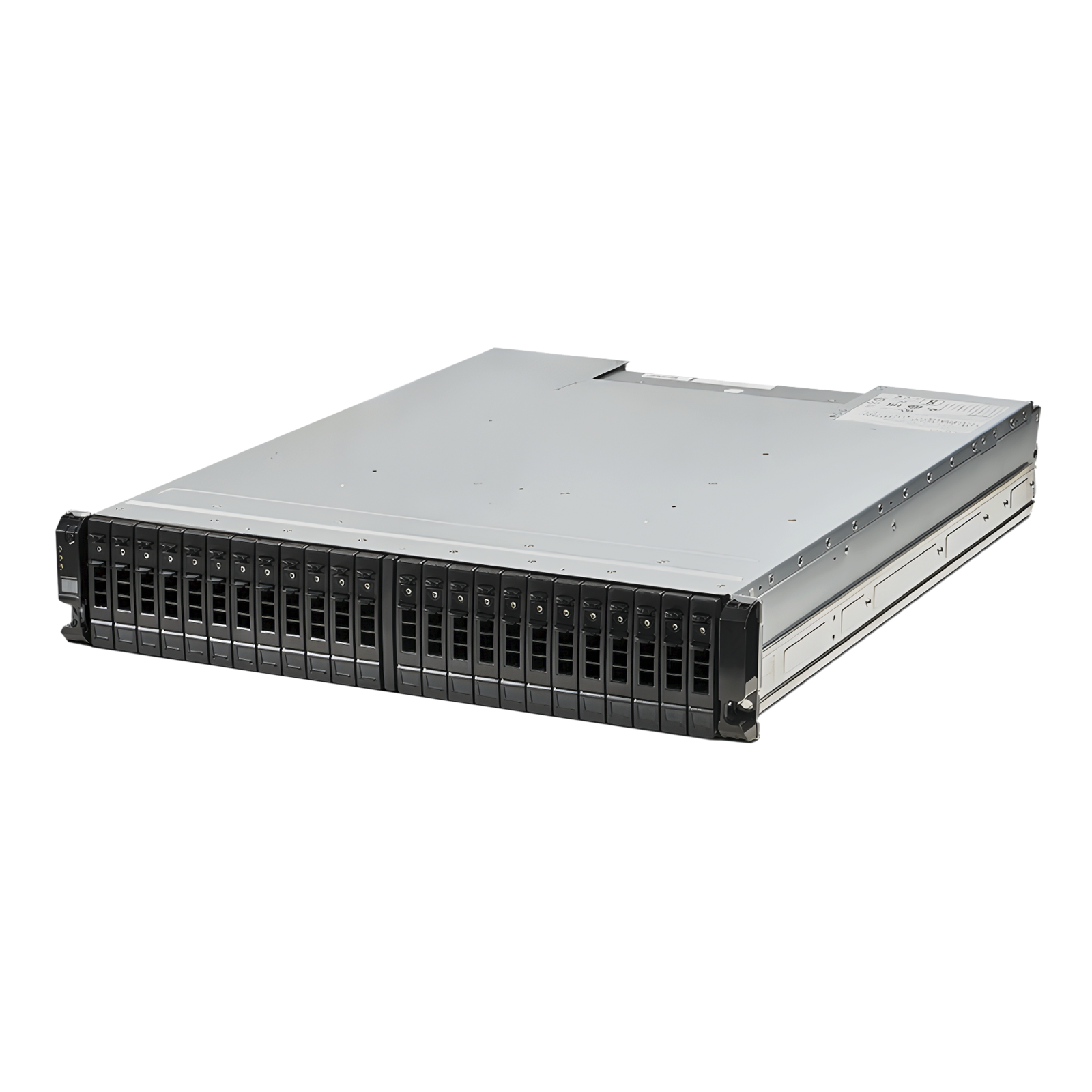

Save space with up to 24 SFF drives in a 2U rackmount enclosure
Expansion for your high-performance deployments
Safeguard data with intelligent fault diagnosis, resolution capabilities, persistent error logging, and monitoring
Ensure data is available with N+1 PCMs, I/O modules, and dual data paths to all drives
Maximum of 28.8GB/s in a dual controller configuration
Transfer data fast with a 12Gb/s SAS interface
Get data to applications when and where it's needed with up to 12Gb/s, yielding an effective maximum throughput of 14.4GB/s in a single I/O module or 28.8GB/s in a dual controller configuration.
Modular & scalable architecture
Built for easy deployment, maintenance, and expansion with interchangeable FRUs, hot-swappable components, universal connectivity, and streamlined cable management.
Ensure applications have access to critical data
Safeguard your data with continuous monitoring, persistent error logging, rapid fault detection, and high-availability features including dual controllers, dual I/O modules, and redundant data paths.
Reduce cost and resources with energy-efficient features
Lower operating costs with energy-efficient performance, high data availability, fast response times, and environmentally compliant design.
Reduce power consumption
80 PLUS Gold and 80 PLUS Platinum power supply options with certified adaptive cooling technology.
Build-in security at the foundation of the data life cycle
Secure business-critical assets with built-in protection, trusted access, and reliable data preservation.
Our Approach to Collaboration with Your Team
Understand unique customer requirements
Commitment to creating trust and long-term partnerships
Ensuring end-to-end transparency, security and compliance at every step
Enabling direct access to Kerno’s team of founders
IT hardware manufactured in the UAE
First enterprise-grade IT hardware manufacturer in the UAE
Manufactruring servers & other microelectronics solutions for the UAE
Best-in-class time for delivery
Leveraging Kerno's resilient supply chain with traceable Tier-1 components
Customer support fully based in the UAE
Reducing response time
Local R&D and production engineering team
Delivering engineering excellence in the UAE for the UAE
Intellectual Property (IP) rights
Fully owned by Kerno
State-of-the-art SMT line and high-end optical inspection machinery
Producing high tech solutions locally at Kerno's own manufacturing plant in the UAE
We look forward to understanding your goals & requirements
Feature
Specifications
Controller
Host/expansion interface
3 universal × 4 12Gb/s mini-SAS HD connectors (SFF-8644) per I/O module
Management
CLI via RS232 & 100Base-T port SES via SAS SFF-8644 ports
Maximum system configuration
Dual host-connected enclosure with a maximum expanded configuration of 10 enclosures for a total of 240 drives
Device support
Dual-port 12Gb/s & 6Gb/s SAS drives
Max drives per enclosure
24
Hot-swappable components
Drives, power cooling modules (PCM) & SBB I/O modules
Dimensions
Height: 88.9 mm / 3.5 in (2 EIA units)
Width: 483 mm / 19 in (IEC rack-compliant)
Depth: 630 mm / 24.8 in
Weight
Product with drives: 24 kg / 53 lb
Power requirements — AC Input:
Input power requirements
90VAC-264VAC, 50 Hz/60 Hz
Max power output per PSU
580W
Environmental/temperature ranges:
Altitude
Operating: 0 m to 3,000 m (0 ft to 10,000 ft)
Non-operating: –300 m to 12,192 m (–1,000 ft to 40,000 ft)
Temperature
Operating: ASHRAE A3, 5°C to 40°C (41°F to 104°F), derate 1°C/175m above 900m, 20°C/hr max rate of change
Non-operating: –40°C to 70°C (–40°F to 158°F)
Humidity
Operating: –12°C DP and 10% RH to 21°C DP and 80% RH, max DP 21°C
Non-operating: 5% to 100% non-condensing
Shock
Operating: 5 Gs, 10 ms, half sine pulses
Non-operating: 15 Gs, 10 ms, half sine pulses
Vibration
Operating: 0.21 Gs rms (5-500Hz)
Non-operating: 1.04 Gs rms (2-200Hz)
Power supply units:
Gold. Ecodesign (Part SP-PCM01-HE580-AC/Model FS580FS104G-XX)
- Power efficiency 115VAC/60Hz|230VAC50/Hz
10% load = >80%|>80%
20% load = >87%|>88%
50% load = >90%|>92%
100% load = >87%|>88% - Power Factory Condition (PFC)
10% load = N/A
20% load = >0.90
50% load = >0.90
100% load = >0.95
Platinum. Ecodesign (Part SP-PCM4-PT580-AC/Model SGT-S-0580ADU00)
- Power efficiency 115VAC/60Hz|230VAC50/Hz
10% load = >80%|>80%
20% load = >90%|>90%
50% load = >92%|>94%
100% load = >89%|>91% - Power Factor Condition
10% load = N/A
20% load = >0.90
50% load = >0.95
100% load = >0.95
We look forward to understanding your goals & requirements
Your Customer Support Options
| Cruise | Performance | Full Throttle | |
|---|---|---|---|
| Onsite Support | |||
| Unlimited 24×7×365 help desk support | |||
| Access to replacement spare parts | |||
| Onsite labor (part replacement) | Business hours (8:00–17:00 local time, Monday–Friday), next business day response | 24×7 onsite service with a 4-hour response for Severity 1 incidents | |
| Hardware replacement assistance | Customer performs replacement | Engineer performs replacement onsite | Engineer performs replacement onsite |
| Secure site coverage (keep failed HDDs/SSDs) | Optional | Optional | Optional |
| Advanced hardware troubleshooting | Remote guidance only | ||
| RMA Management | Customer performs packaging and returns shipment using a prepaid label | Service provider handles logistics and return processing | Service provider handles logistics and return processing |
| Prepaid return shipping | |||
| Coverage hours | 24×7 help desk; replacement performed by customer | 8:00–17:00 local time, Monday–Friday | 24×7×365 |
| Target response time | Best-effort remote assistance | Next business day | 4 hours (critical incidents) |
