10U (W447 x H441.75 x D800 mm)

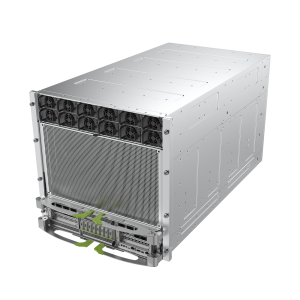

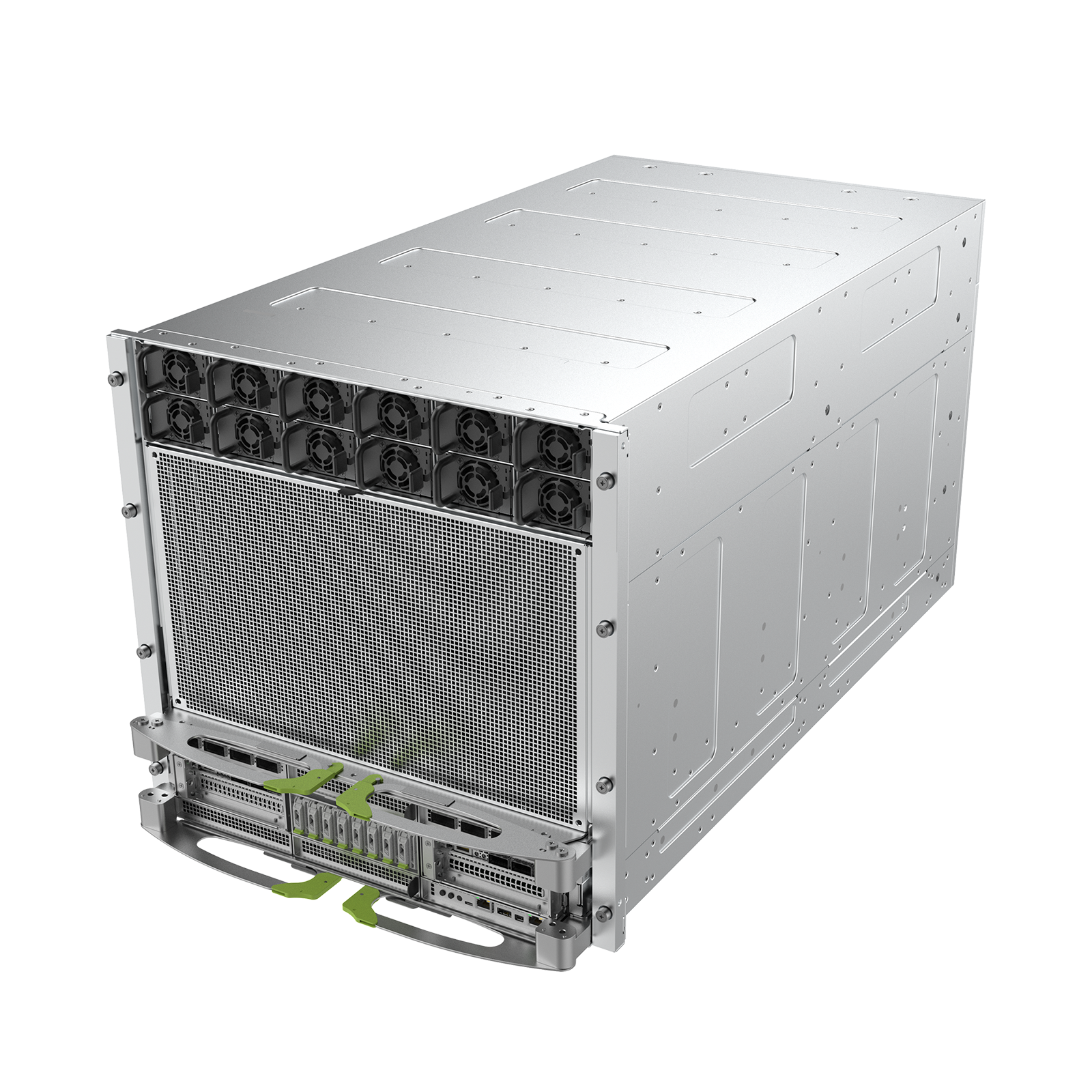

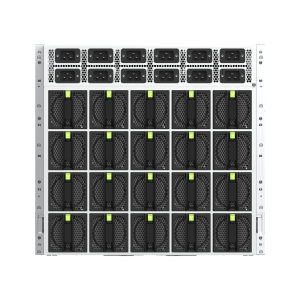

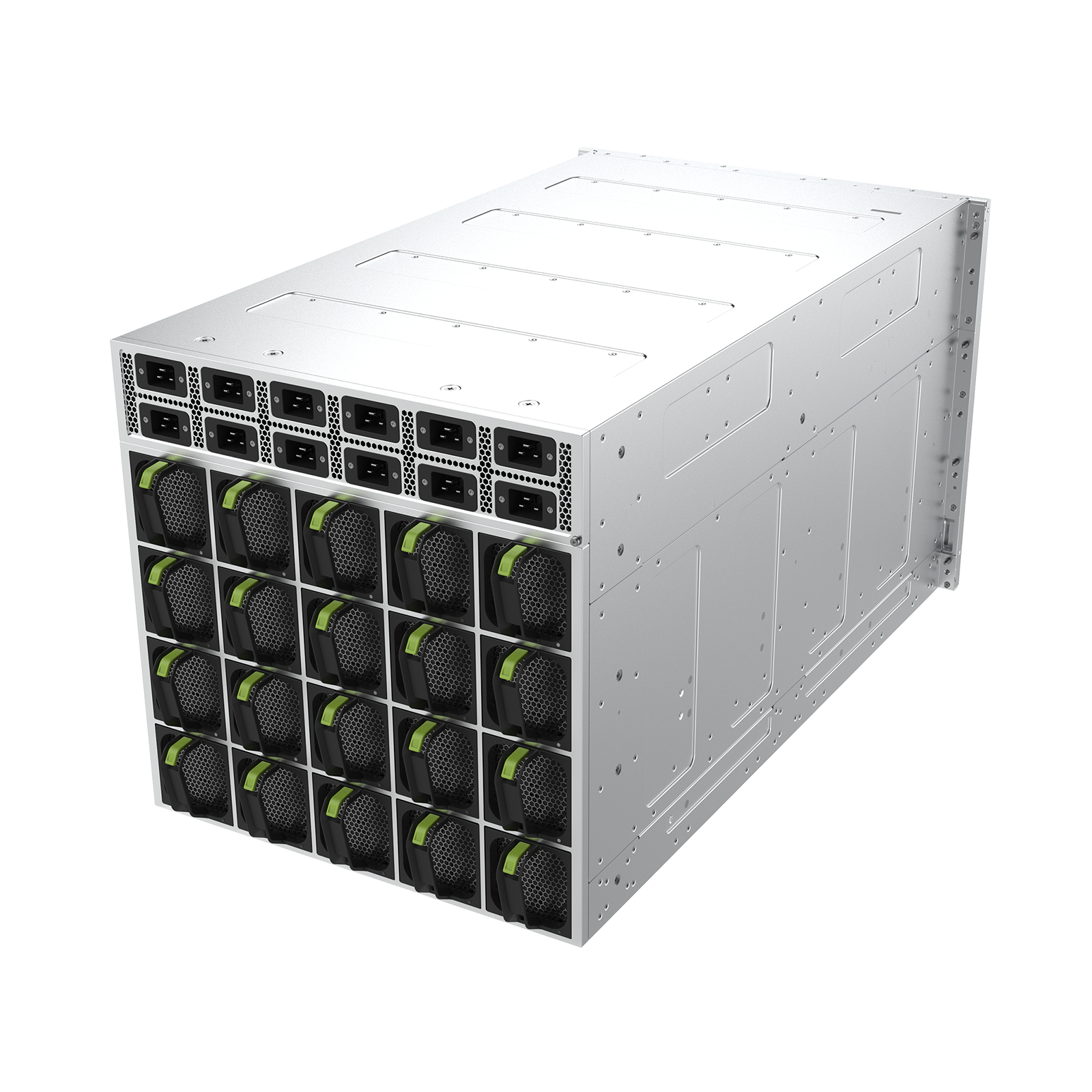

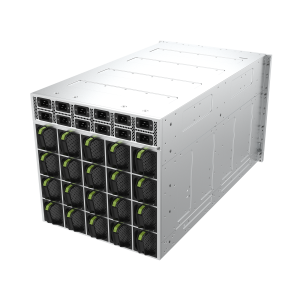

UQLEAD K03-X220
June 2026 • Version 05
Feature
Specifications
Dimensions
CPU
Intel® Xeon® 6700 Series processors
Dual processors, TDP up to 350W
Operating system compatibility
Red Hat Enterprise Linux server 9.7 x64
Red Hat Enterprise Linux server 9.8 x64
Red Hat Enterprise Linux server 10.0 x64
Red Hat Enterprise Linux server 10.1 x64
SUSE Linux Enterprise server 15 SP7
SUSE Linux Enterprise server 16
Ubuntu 22.04 LTS x64
Ubuntu 24.04 LTS x64
Chipset
System on Chip

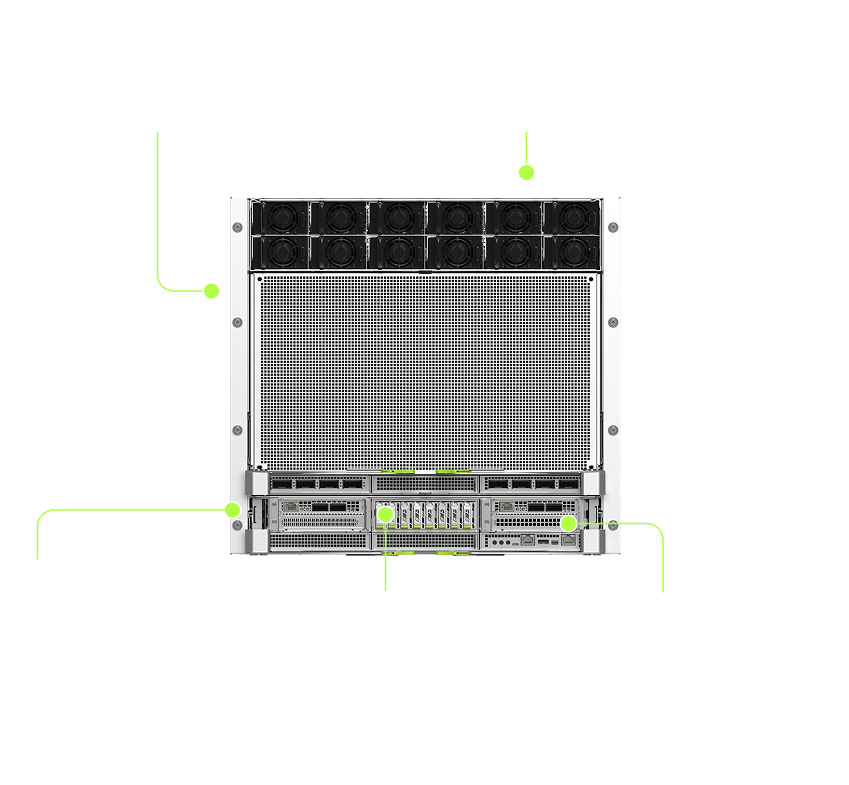

Memory
32 x DIMMs
8-channel DDR5 RDIMM
Up to 6400 MT/s (1DPC), 6000 MT/s (2DPC)
LAN
1 x 1 GbE Management LAN
1 x 1 GbE LAN
8 x 800 Gb/s OSFP InfiniBand XDR or dual 400 Gb/s Ethernet, for GPU networking
Video
Integrated in ASPEED® AST2600:
- 1 x Mini DisplayPort
Storage
Front hot-swap:
8 x E1.S Gen5 NVMe
Internal M.2:
2 x M.2 (2280)

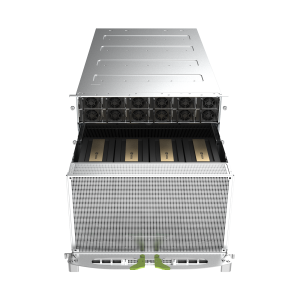

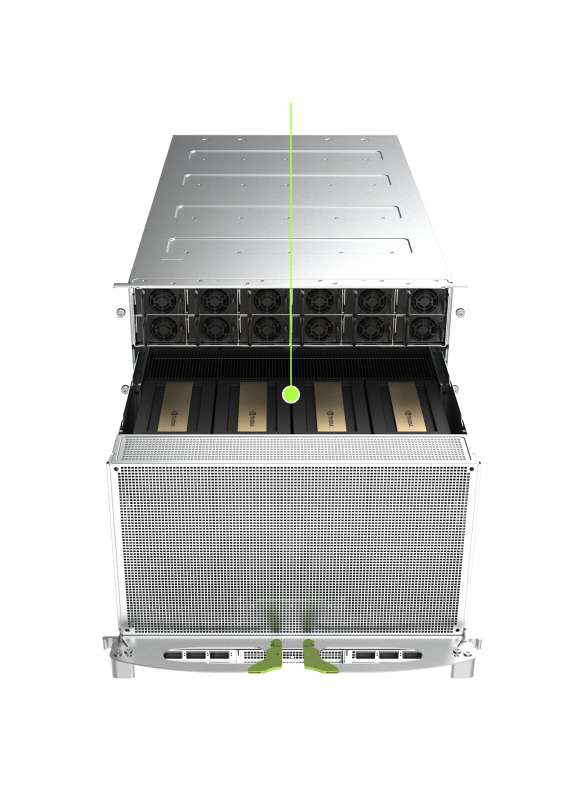

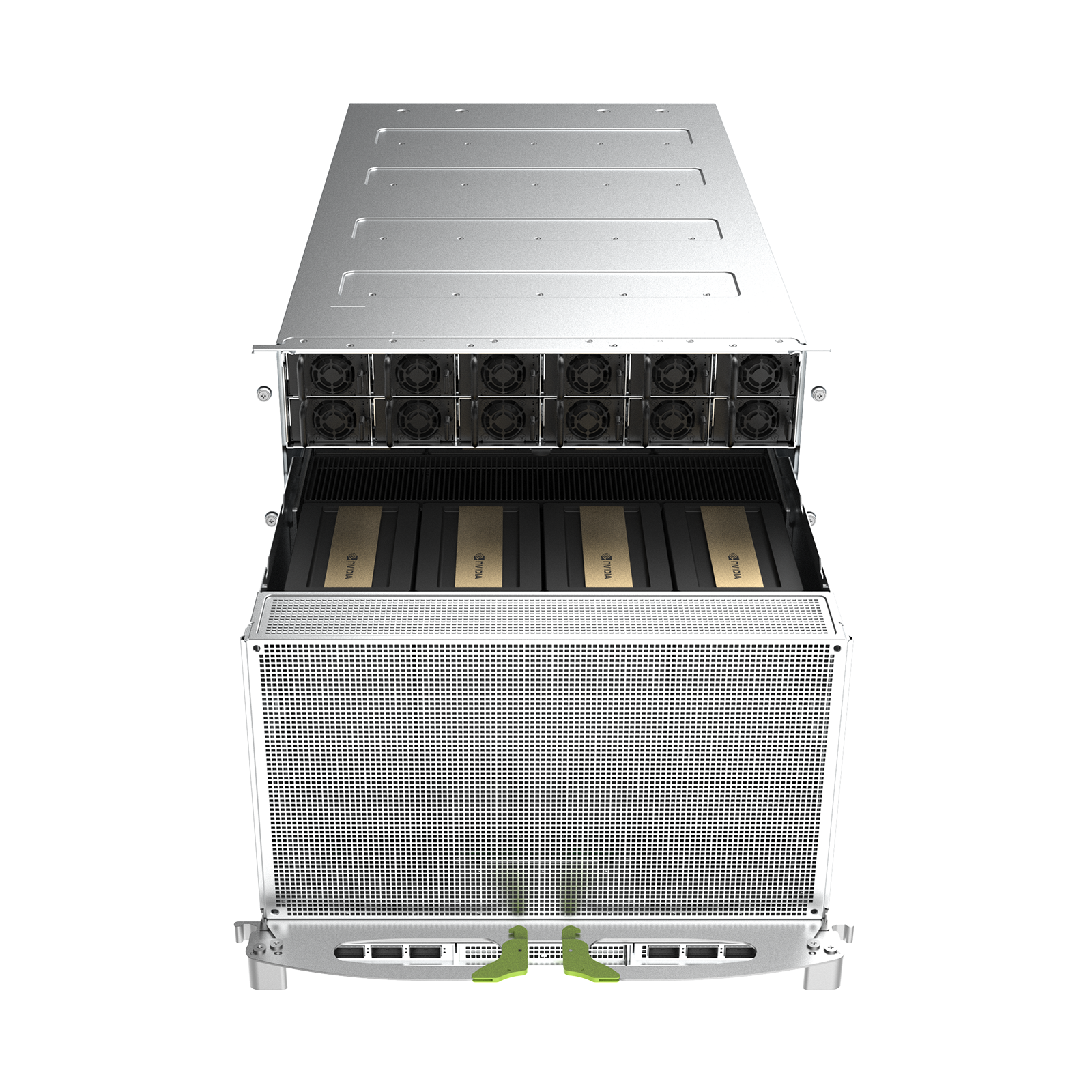

Modular GPU

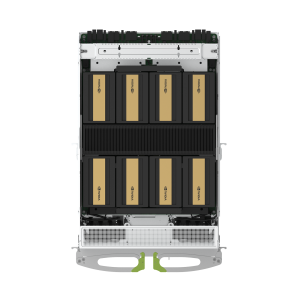

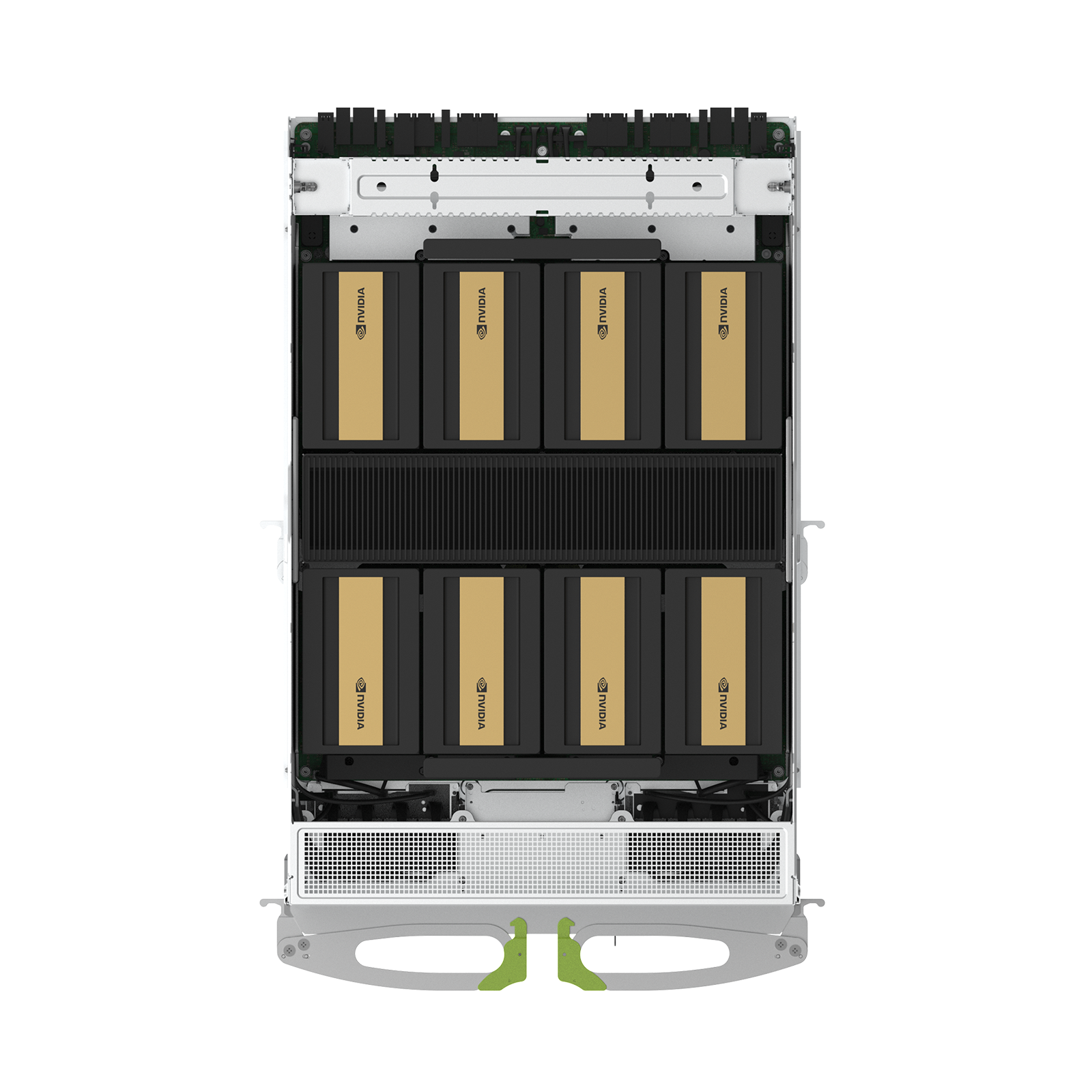

NVIDIA HGX™ B300 with 8 x SXM GPUs
PCIe expansion slots
4 x FHFL PCIe Gen5 x16
I/O ports

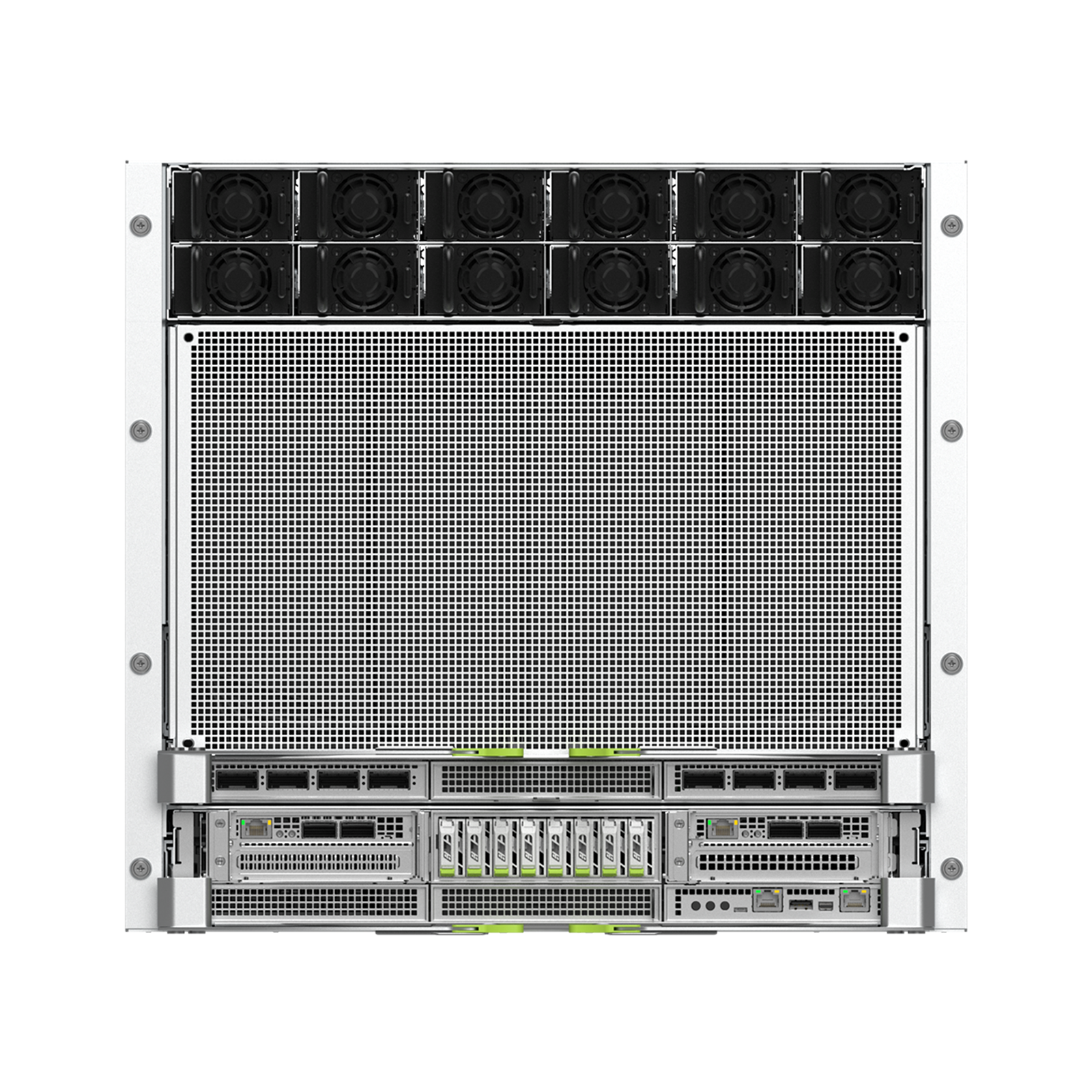

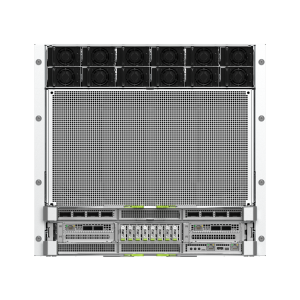

Front:
1 x USB 3.0
1 x Mini DisplayPort
1 x RJ45
1 x MLAN
8 x OSFP
Security modules
TPM 2.0

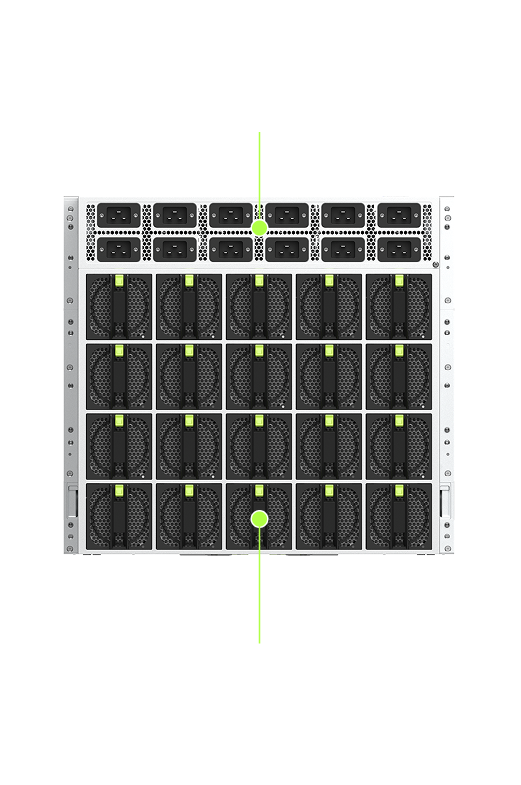

Power supply
12 x 3200W 80 PLUS Titanium redundant power supplies
AC Input:
- 115-127V ~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
*The system power supply requires C19 power cord.
System management
ASPEED® AST2600 Baseboard Management Controller
KERNO Management Console web interface

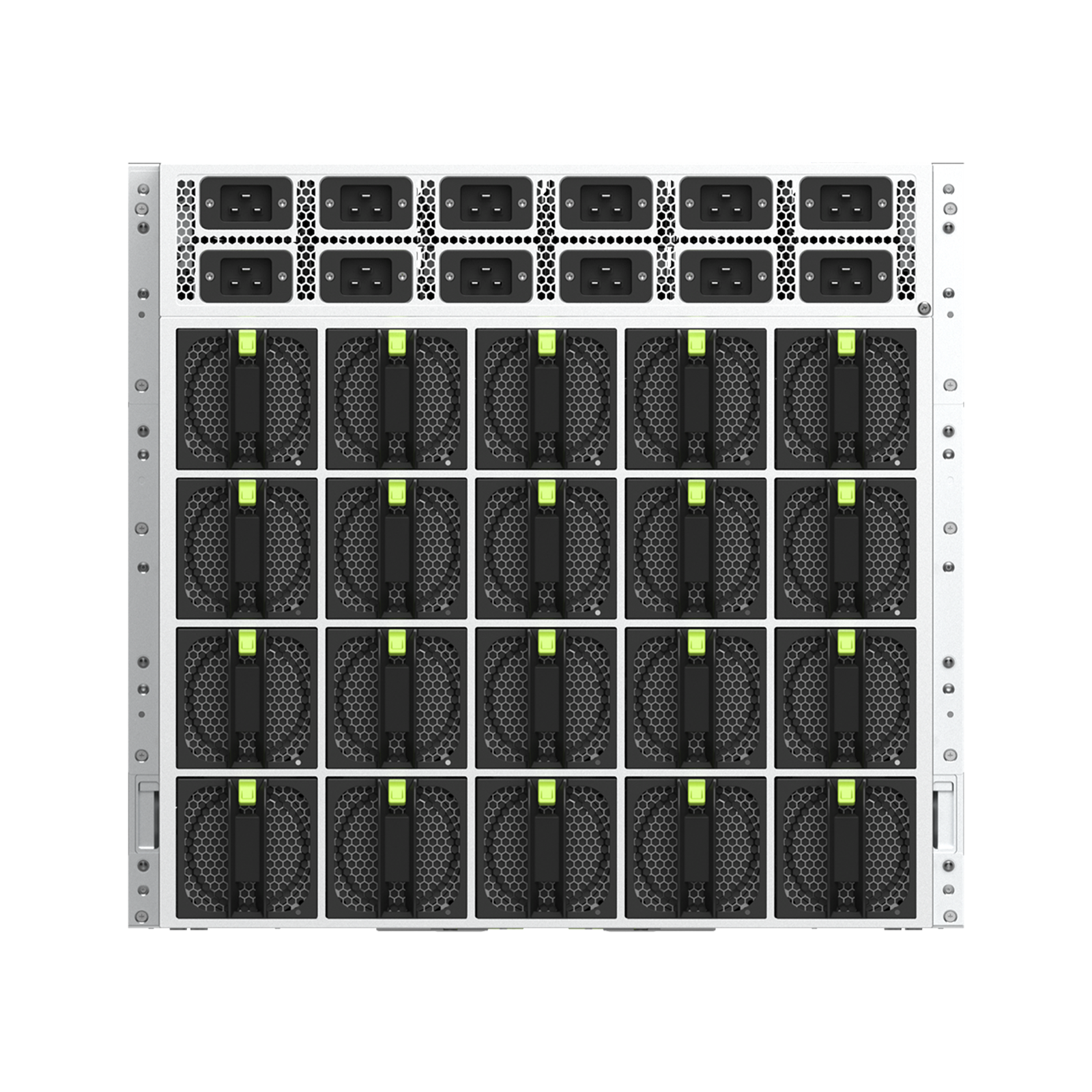

System fans
20 x 80x80x80 mm
Operating properties
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
Packaging content
1 x 10U chassis
1 x L-shape rail kit
Warranty
3- to 5-year limited warranty
Your Customer Support Options
| Cruise | Performance | Full Throttle | |
|---|---|---|---|
| Onsite Support | |||
| The incident reaction time (maximum priority) | within 4 hours | within 2 hours | within 1 hour |
| Support line request resolution | 9x5 | 24x7 | 24x7 |
| Self-service request registration 24 x 7 x 365 | |||
| Omnichannel support: call-center, e-mail, self-service portal | |||
| Real-time request status monitoring | |||
| Spare parts for replacement | |||
| Dedicated Service Manager | |||
| Reports | 2 times a year | quaterly | |
| Updates installation | remote | ||
| Root-cause analysis for critical incidents | |||
| Fixed recovery time option | |||
| Remote monitoring |
Datasheet
UQLEAD K03-X220 Ultra Overview
Intel® Xeon® 6 processors
Intel® Xeon® 6 is a generation of processors that has tailored its CPU lineup to target all uses cases such as Cloud Computing, AI, Analytics, and Edge & IOT. Whether it's high compute density that is dependent on core count and power efficiency or AI/HPC applications that heavily rely on strong single-core performance, this new platform covers them all with its Performance cores (P-cores) and Efficient-cores (E-cores). Along with flexible I/O options, integrated accelerators, and support for CXL 2.0 devices, Intel Xeon 6 fulfills customer needs across the broadest range of data center workloads, segments, and deployment models.
Supports NVIDIA HGX™ B300
NVIDIA HGX™ B300 is built for the age of AI reasoning with enhanced compute and increased memory. Featuring 7X more AI compute than Hopper platforms, 2.1TB of HBM3E memory, and high-performance networking integration with NVIDIA® ConnectX®-8 SuperNICs, Blackwell Ultra delivers breakthrough performance on the most complex workloads from agentic systems and reasoning, to real time video generation for every data center.
