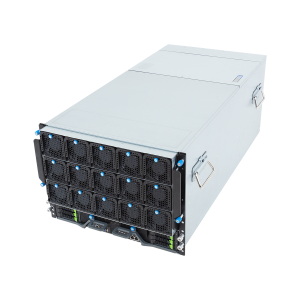

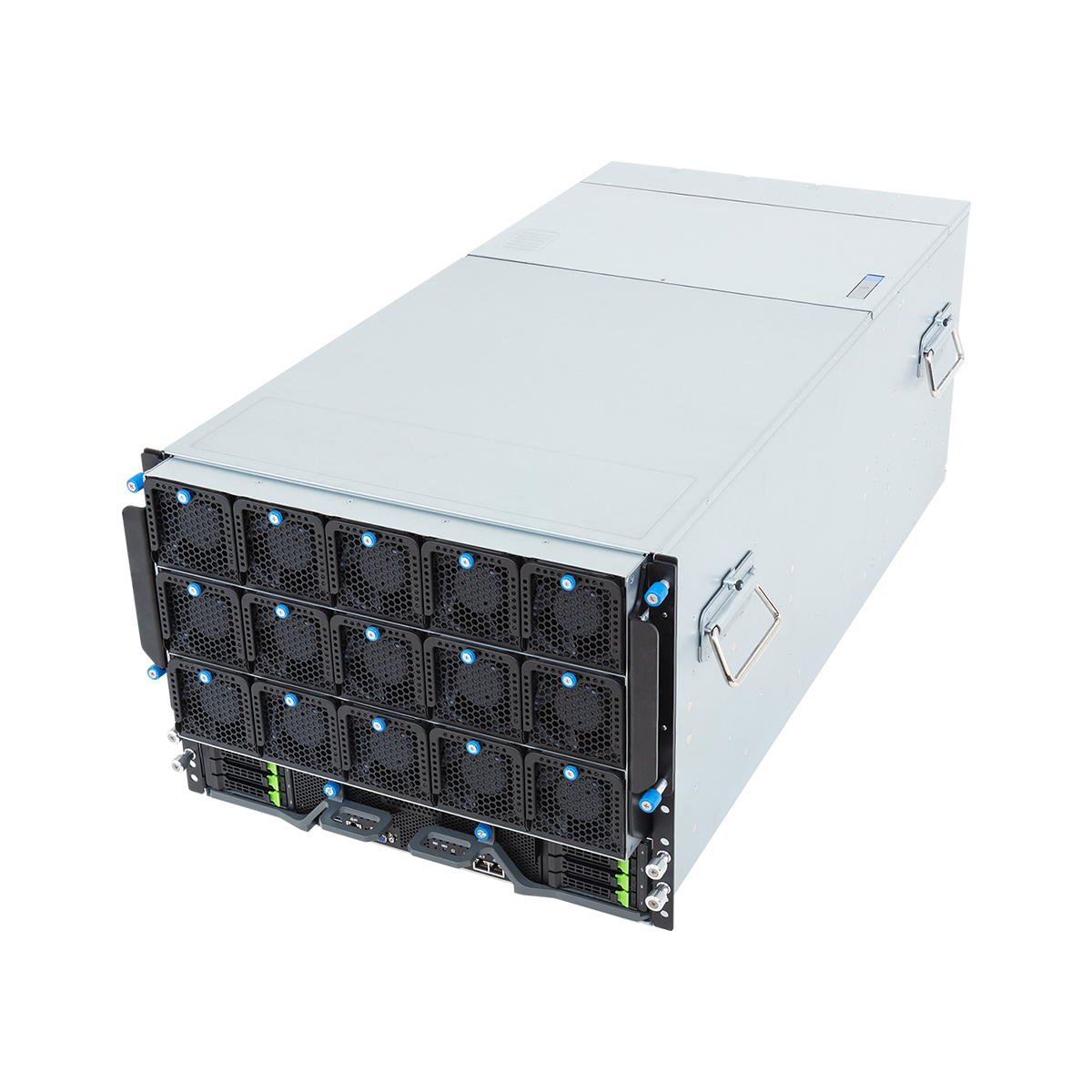

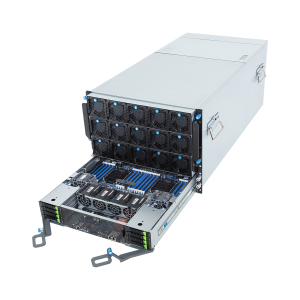

8U (W447 x H351 x D923 mm)
Datasheet UQLEAD K03-8220 Ultra
June 2026 • Version 04
Feature
Specifications
Dimensions
CPU
Intel® Xeon® 6 processors:
- Intel ® Xeon® 6700 Series processors
- Intel® Xeon® 6500 Series processors
Dual processors, TDP up to 350W
Operating system compatibility
Windows Server 2022
Windows Server 2025
Red Hat Enterprise Linux server 9.6 x64
Red Hat Enterprise Linux server 9.7 x64
Red Hat Enterprise Linux server 10.0 x64
Red Hat Enterprise Linux server 10.1 x64
SUSE Linux Enterprise server 15 SP6
SUSE Linux Enterprise server 15 SP7
SUSE Linux Enterprise server 16
Ubuntu 22.04 LTS x64
Ubuntu 24.04 LTS x64
Citrix Hypervisor 8.2 LTSR CU1
XenServer 8.4
VMware ESXi 8.0 Update 3e
VMware ESXi 9.0
VMware ESXi 9.0.1
VMware ESXi 9.0.2
Chipset
System on Chip

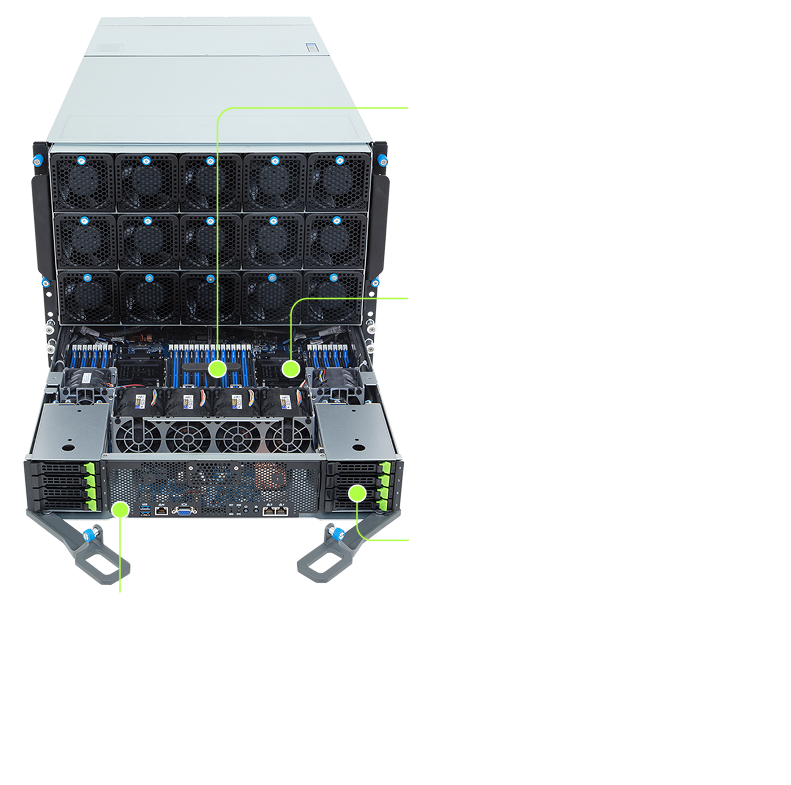

Memory
32 x DIMMs
8-channel DDR5 RDIMM/MRDIMM
For RDIMM: up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
For MRDIMM: up to 8000 MT/s*
*MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores and only in a 1DPC configuration.
LAN
Front:
2 x 10 Gb/s LAN (1 x Intel® X710-AT2)
– Support NCSI function
1 x 10/100/1000 Mb/s Management LAN
Rear:
8 x 800 Gb/s OSFP InfiniBand XDR or dual 400 Gb/s Ethernet, for GPU networking
1 x 10/100/1000 Mbps Management LAN
*When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in ASPEED® AST2600:
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4
1 x M.2 (2280/22110), PCIe Gen5 x2

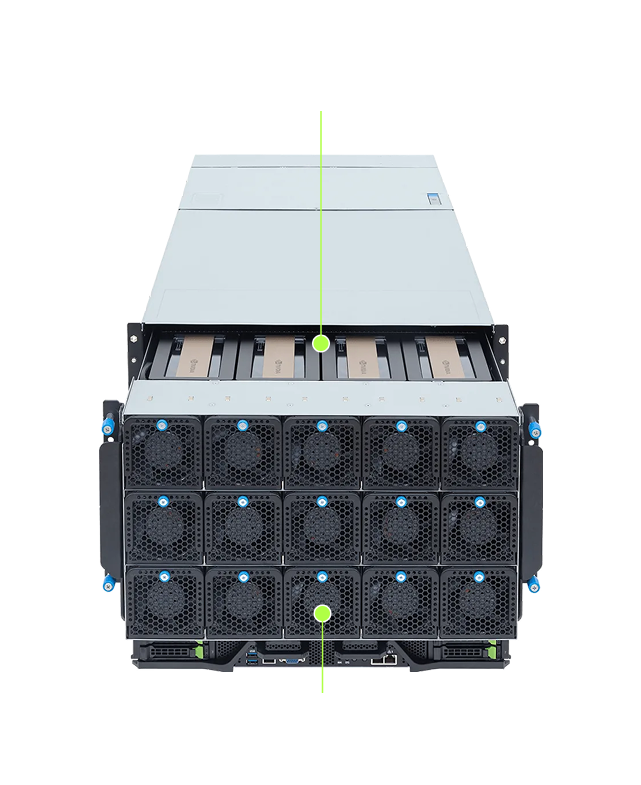

Modular GPU
NVIDIA HGX™ B300 with 8 x SXM GPUs
PCIe expansion slots
4 x FHHL PCIe Gen5 x16
I/O ports

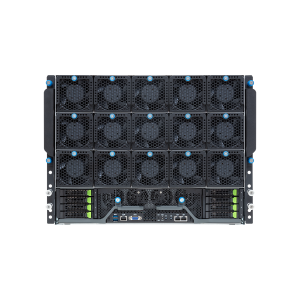

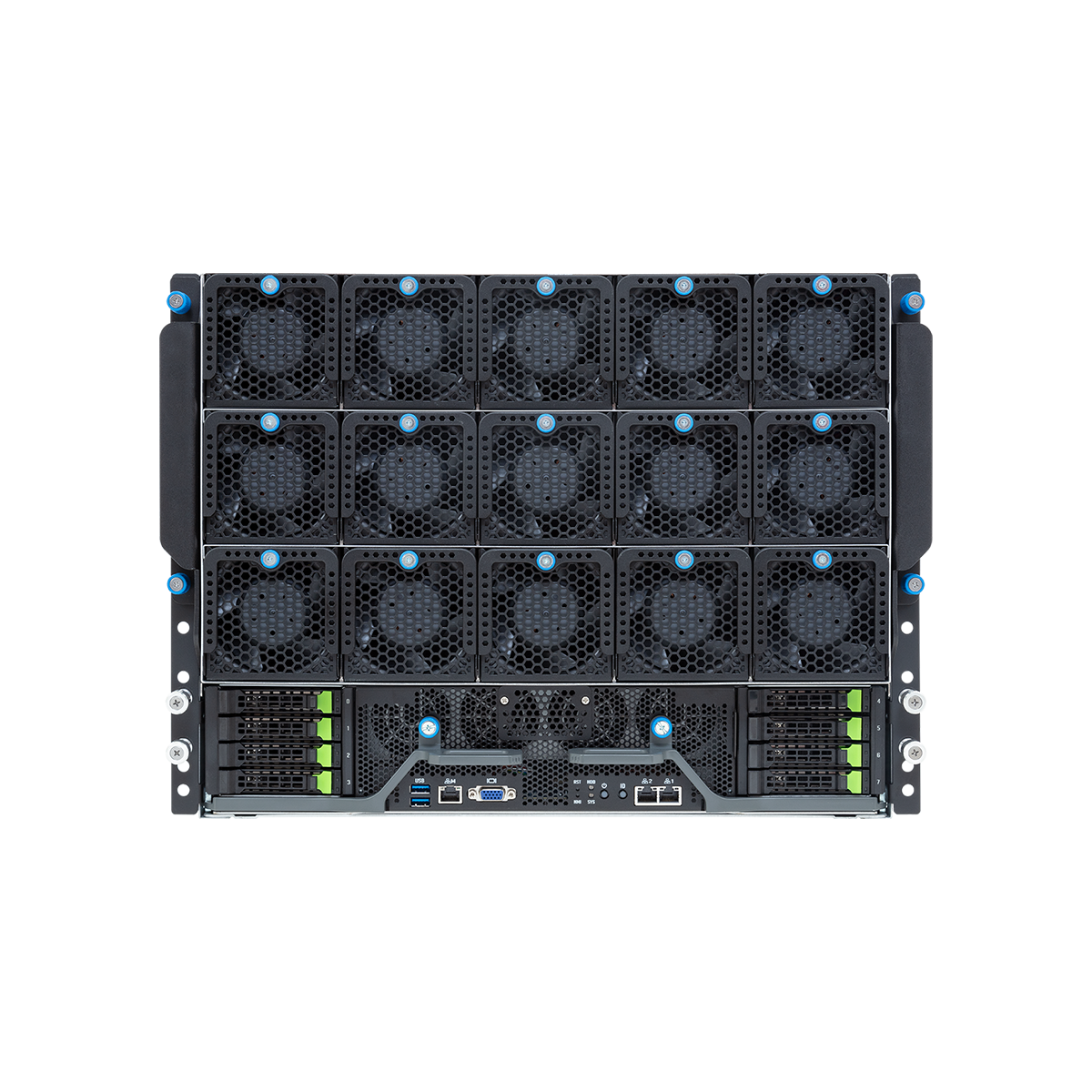

Front:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN

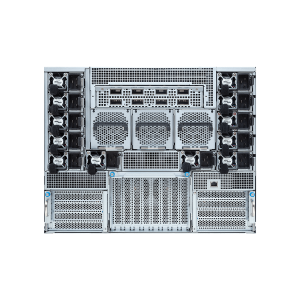

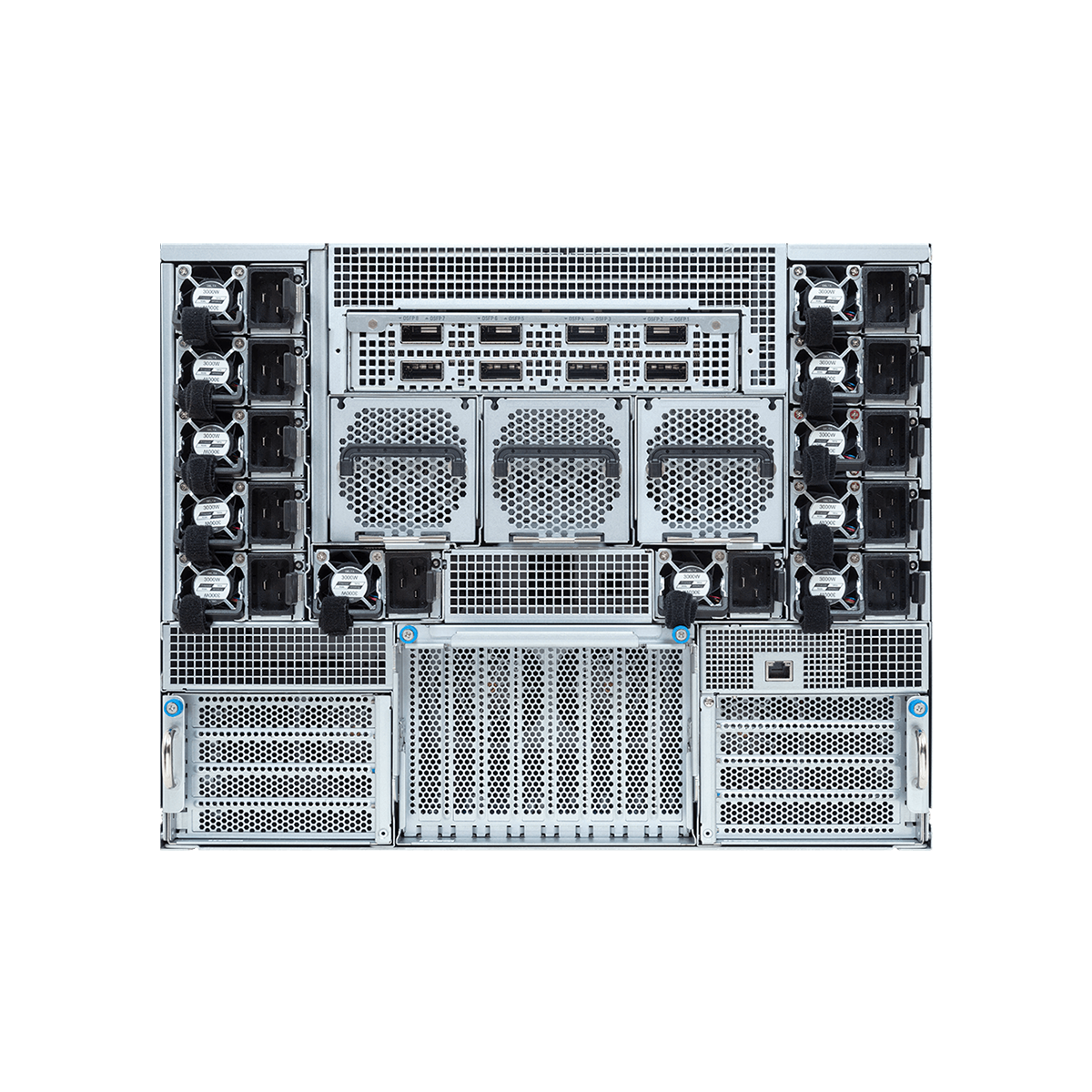

Rear:
8 x OSFP, 1 x MLAN
Security modules
TPM 2.0

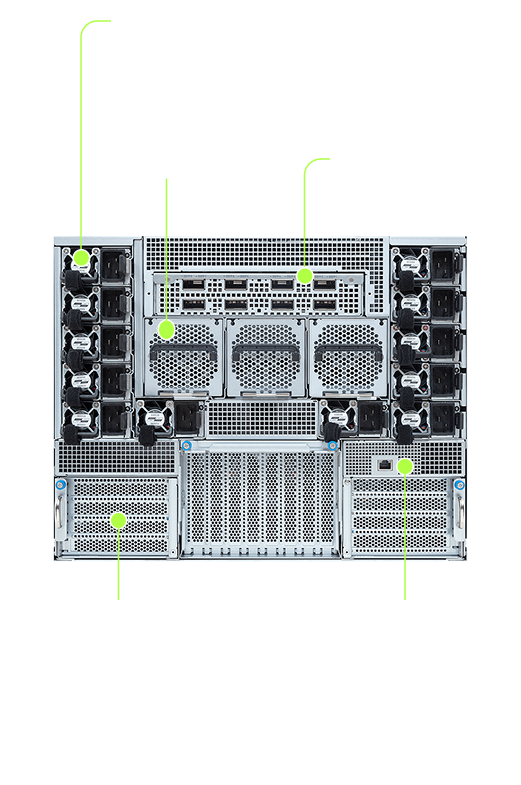

Power supply
12 x 3000W 80 PLUS Titanium redundant power supplies AC Input: 115-240V
*The system power supply requires C19 power cord.
System management
ASPEED® AST2600 Baseboard Management Controller
KERNO Management Console web interface
System fans
Motherboard: 2 x 60x60x56 mm / 4 x 60x60x76 mm
OSFP ports: 4 x 40x40x56 mm
PCIe slots: 2 x 80x80x56 mm
GPU tray: 15 x 80x80x80 mm
Operating properties
Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
Packaging content
1 x 8U chassis
1 x L-shape rail kit
Warranty
3- to 5-year limited warranty
Your Customer Support Options
| Cruise | Performance | Full Throttle | |
|---|---|---|---|
| The incident reaction time (maximum priority) | within 4 hours | within 2 hours | within 1 hour |
| Support line request resolution | 9x5 | 24x7 | 24x7 |
| Self-service request registration 24 x 7 x 365 | |||
| Omnichannel support: call-center, e-mail, self-service portal | |||
| Real-time request status monitoring | |||
| Spare parts for replacement | |||
| Dedicated Service Manager | |||
| Reports | 2 times a year | quaterly | |
| Updates installation | remote | ||
| Root-cause analysis for critical incidents | |||
| Fixed recovery time option | |||
| Remote monitoring |
Professional Support Services
Our customer support team is happy to share further details about our custom support services with you.
Datasheet
Kerno UQLEAD K03-8220 Ultra overview
Intel® Xeon® 6 processors
Intel® Xeon® 6 is a generation of processors that has tailored its CPU lineup to target all uses cases such as Cloud Computing, AI, Analytics, and Edge & IOT. Whether it's high compute density that is dependent on core count and power efficiency or AI/HPC applications that heavily rely on strong single-core performance, this new platform covers them all with its Performance cores (P-cores) and Efficient-cores (E-cores). Along with flexible I/O options, integrated accelerators, and support for CXL 2.0 devices, Intel Xeon 6 fulfills customer needs across the broadest range of data center workloads, segments, and deployment models.

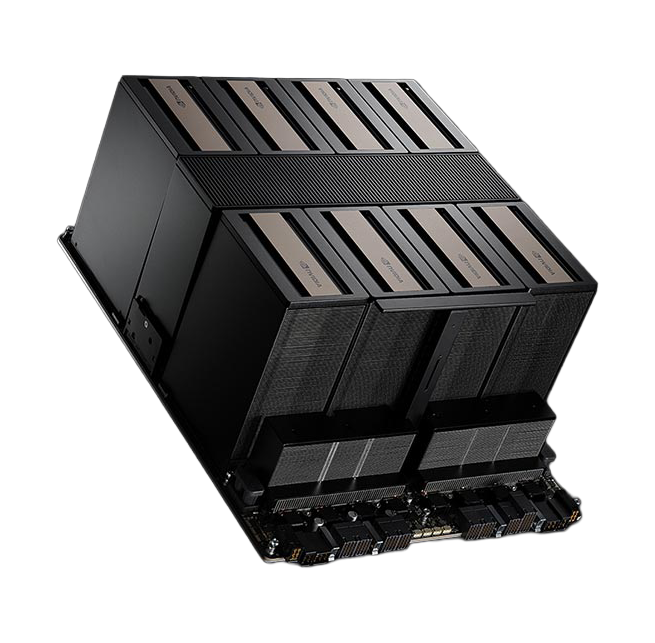

Supports NVIDIA HGX™ B300
NVIDIA HGX™ B300 is built for the age of AI reasoning with enhanced compute and increased memory. Featuring 7X more AI compute than Hopper platforms, 2.1TB of HBM3E memory, and high-performance networking integration with NVIDIA® ConnectX®-8 SuperNICs, Blackwell Ultra delivers breakthrough performance on the most complex workloads from agentic systems and reasoning, to real time video generation for every data center.
