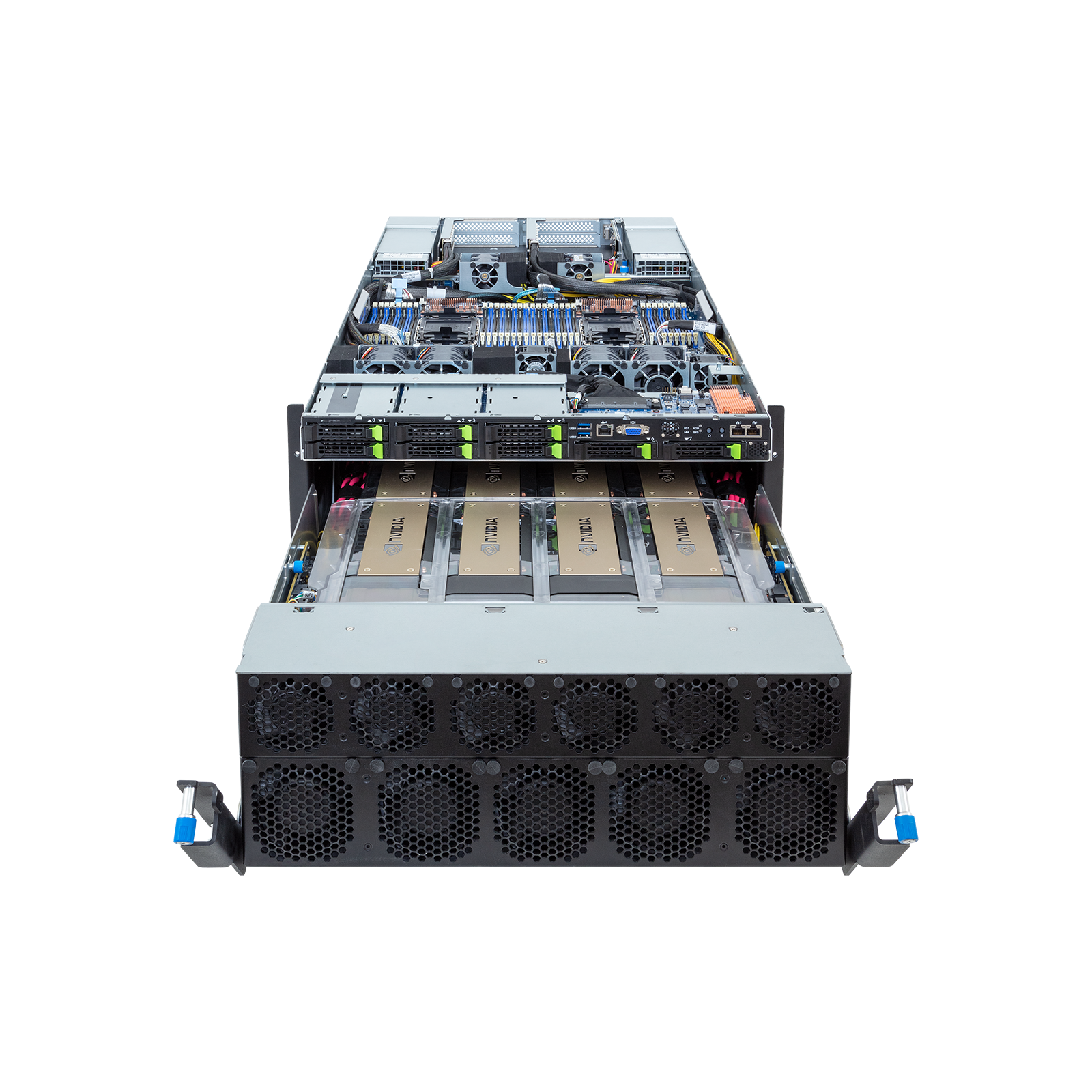

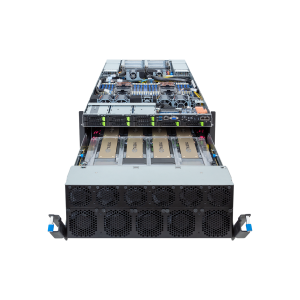

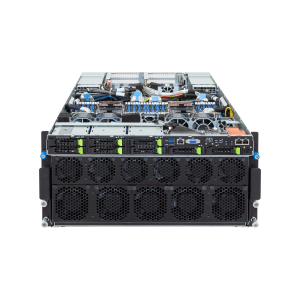

5U (W447 x H219.7 x D945 mm)
Datasheet UQLEAD K03-5210
June 2026 • Version 04
Feature
Specifications
Dimensions

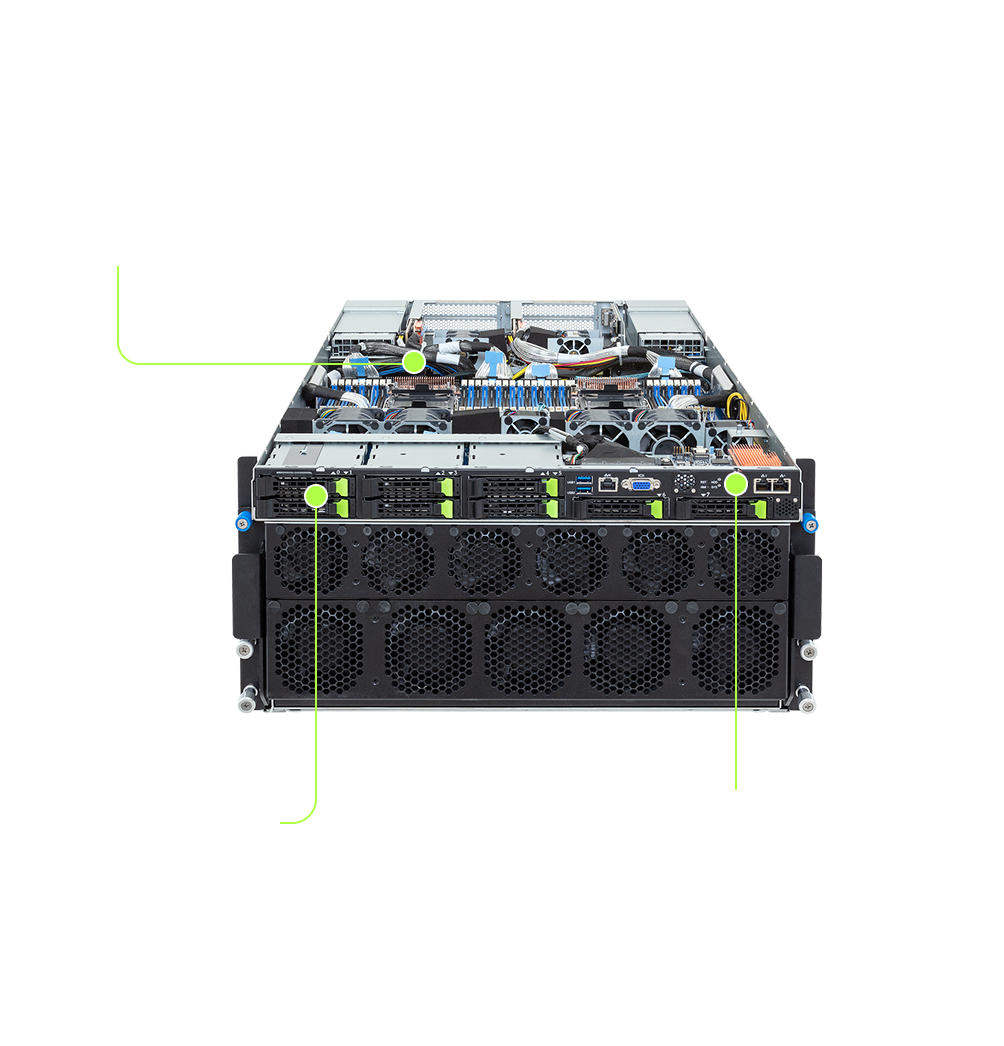

CPU
5th Generation Intel® Xeon® Scalable processors
4th Generation Intel® Xeon® Scalable processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Operating system compatibility
Windows Server 2022
Windows Server 2025
Red Hat Enterprise Linux server 9.6 x64
Red Hat Enterprise Linux server 9.7 x64
Red Hat Enterprise Linux server 10.0 x64
Red Hat Enterprise Linux server 10.1 x64
SUSE Linux Enterprise server 15 SP6
SUSE Linux Enterprise server 15 SP7
SUSE Linux Enterprise server 16
Ubuntu 22.04 LTS x64
Ubuntu 24.04 LTS x64
Citrix Hypervisor 8.2 LTSR CU1
XenServer 8.4
VMware ESXi 8.0 Update 3e
VMware ESXi 9.0
VMware ESXi 9.0.1
VMware ESXi 9.0.2
Chipset
Intel® C741
Memory
32 x DIMMs
8-channel DDR5 RDIMM
For 5th Gen Intel® Xeon®: up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
For 4th Gen Intel® Xeon®: up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
For Intel® Xeon® Max Series: up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
LAN

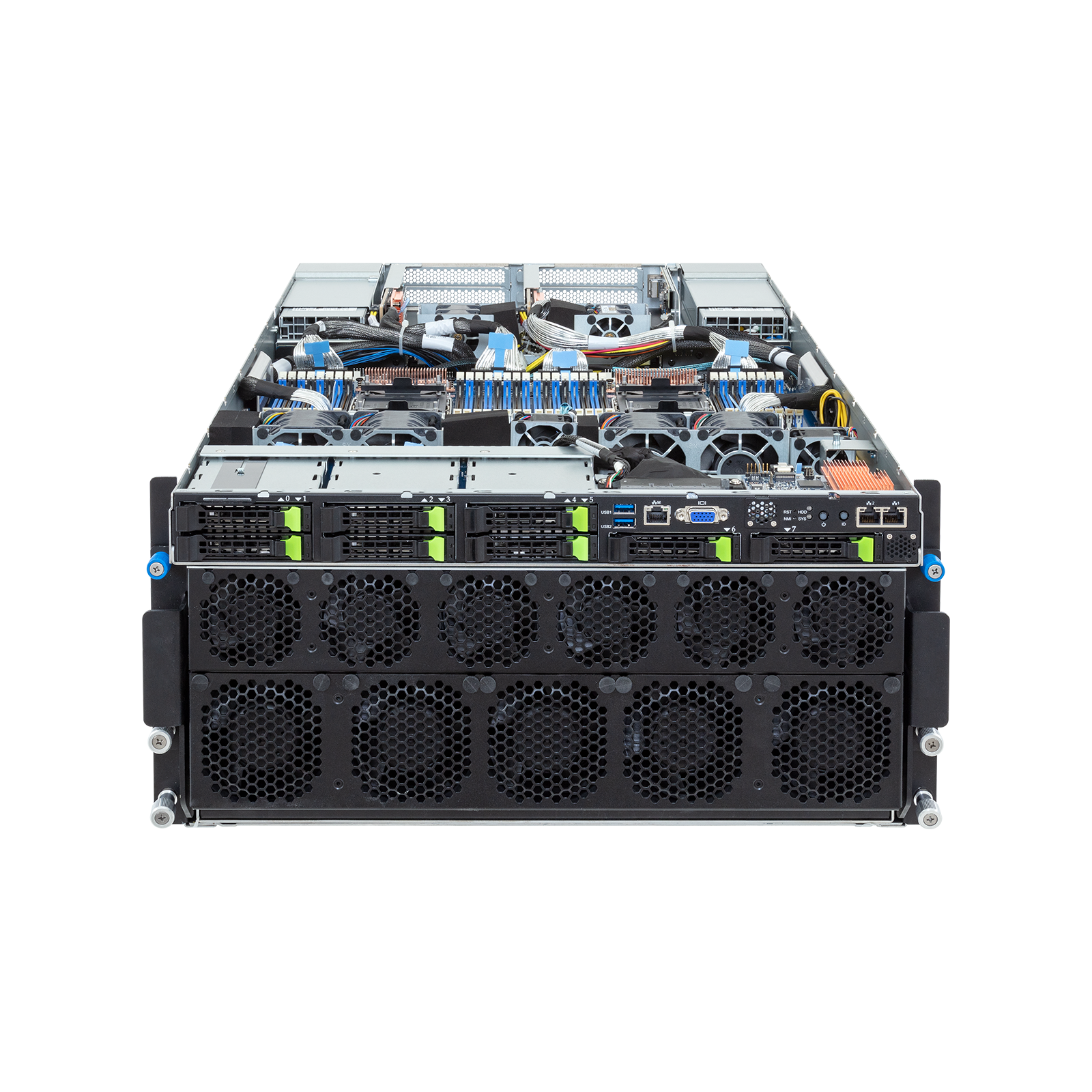

Front:
2 x 10Gb/s LAN (1 x Intel® X710-AT2) NCSI support
1 x 10/100/1000 Mbps Management LAN

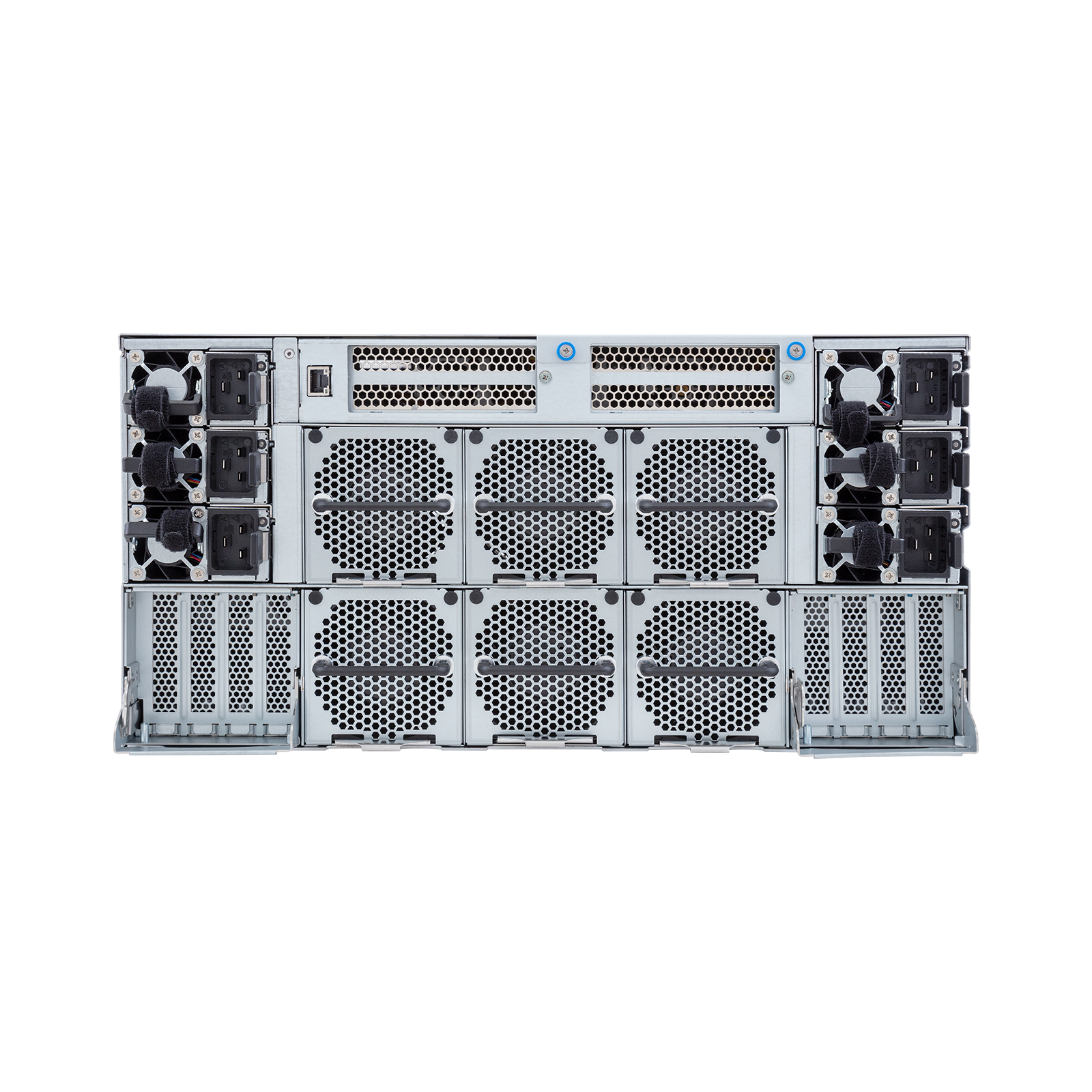

Rear:
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600:
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe / SATA / SAS-4*
*SAS card is required to support SAS drives.
RAID
Intel® SATA RAID 0 / 1 / 10 / 5
Supports optional RAID add-in cards

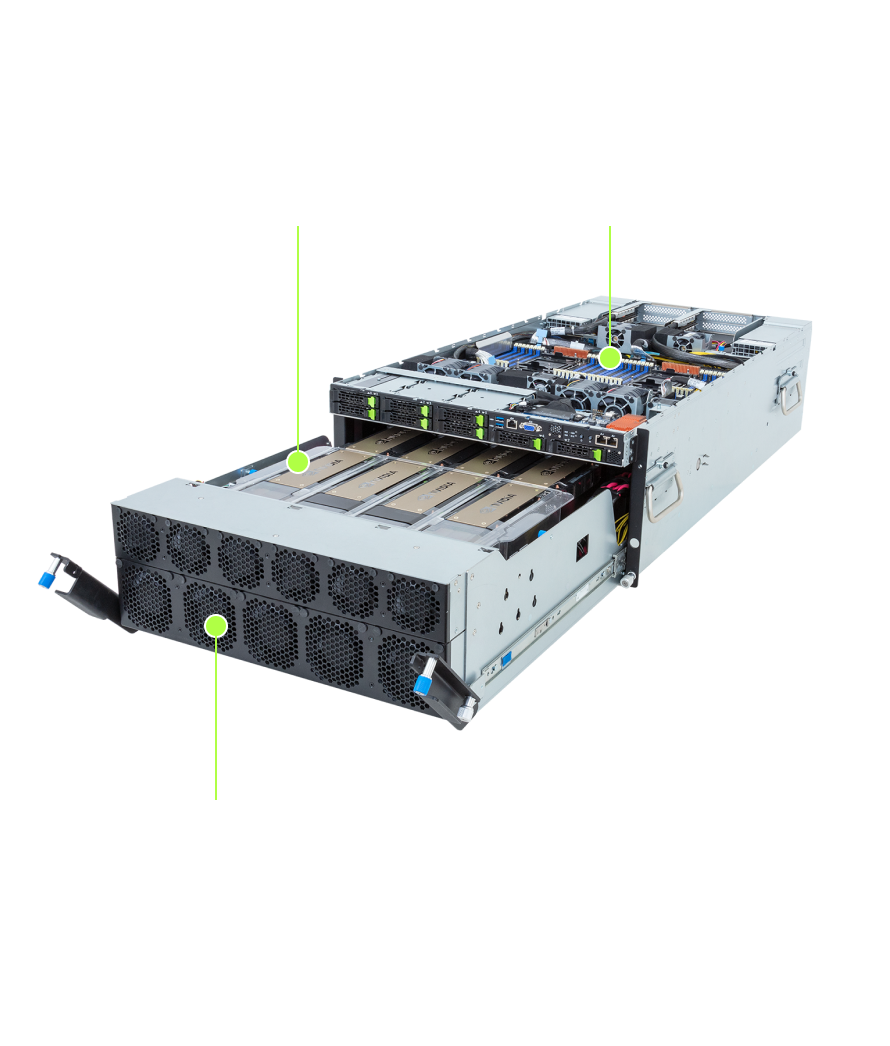

Modular GPU
NVIDIA HGX™ H200 with 8 x SXM GPUs
I/O ports

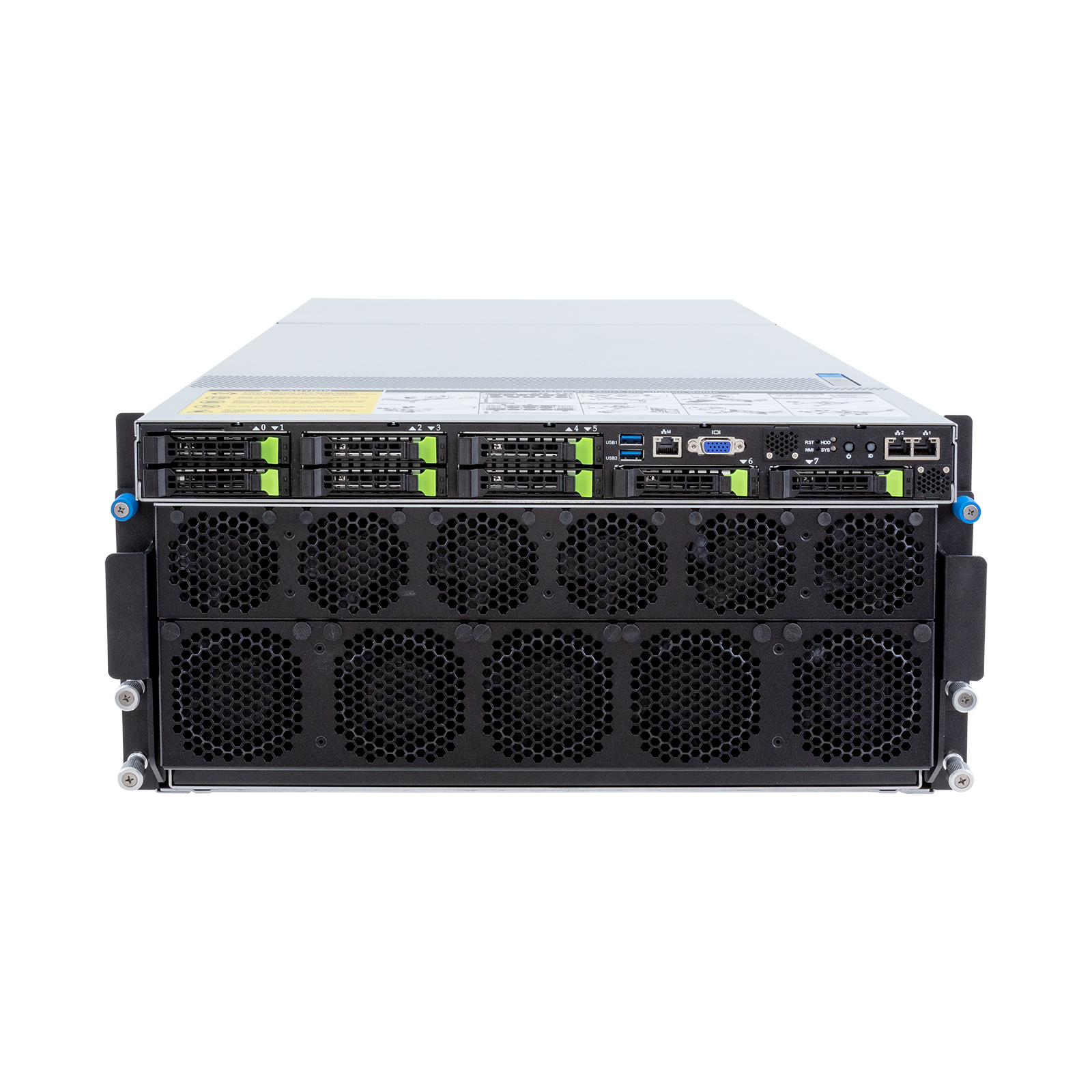

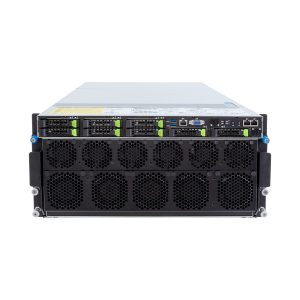

Front: 2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN

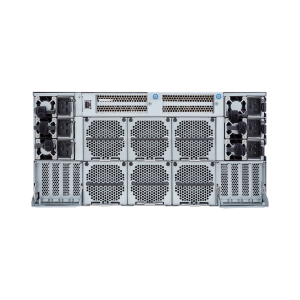

Rear: 1 x MLAN
PCIe expansion slots
4 x FHHL PCIe Gen5 x16
8 x LP PCIe Gen5 x16

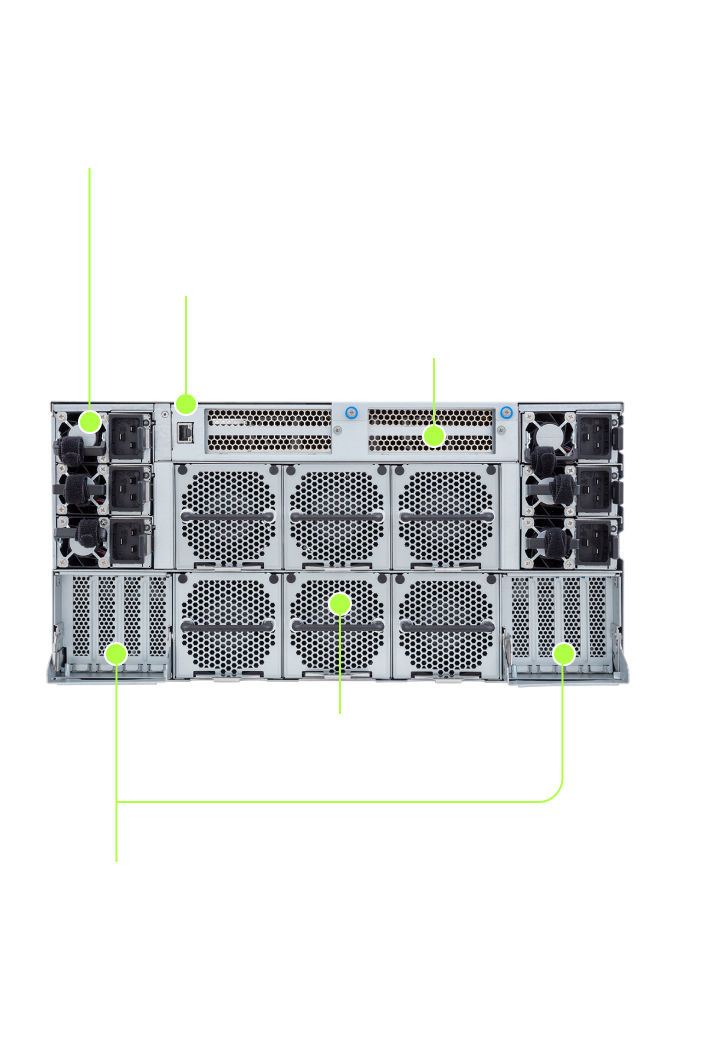

Power supply
4+2 3000W 80 PLUS Titanium redundant power supplies
AC Input: 200-240V
*The system power supply requires C19 power cord.
System management
ASPEED® AST2600 baseboard management controller
KERNO Management Console web interface
System fans
Motherboard:
2 x 40x40x28 mm / 4 x 60x60x56 mm
PCIe slots:
4 x 40x40x28 mm / 2 x 40x40x56 mm
GPU tray:
6 x 60x60x76 mm / 11 x 80x80x80 mm
Operating properties
Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
Packaging content
1 x 5U chassis
1 x L-shape rail kit
6 x C19 power cord
Warranty
3- to 5-year limited warranty
Your Customer Support Options
| Cruise | Performance | Full Throttle | |
|---|---|---|---|
| The incident reaction time (maximum priority) | within 4 hours | within 2 hours | within 1 hour |
| Support line request resolution | 9x5 | 24x7 | 24x7 |
| Self-service request registration 24 x 7 x 365 | |||
| Omnichannel support: call-center, e-mail, self-service portal | |||
| Real-time request status monitoring | |||
| Spare parts for replacement | |||
| Dedicated Service Manager | |||
| Reports | 2 times a year | quaterly | |
| Updates installation | remote | ||
| Root-cause analysis for critical incidents | |||
| Fixed recovery time option | |||
| Remote monitoring |
Professional Support Services
Our customer support team is happy to share further details about our custom support services with you.
Datasheet
Kerno UQLEAD K03-5210 overview
Redefine Performance with 4th/5th Gen Intel® Xeon® Scalable Processors and Intel® Xeon® CPU Max Series
AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel® Xeon® Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel® Xeon® CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads.
