4U (W438 x H175 x D800 mm)
UQLEAD K03-42A0
June 2026 • Version 05
Feature
Specifications
Dimensions
CPU
AMD EPYC" 9005 Series processors
Dual processor, cTDP up to 400W:
- At 25 °C ambient, cTDP up to 500W
Operating system compatibility
Windows Server 2022
Windows Server 2025
Red Hat Enterprise Linux server 9.6 x64
Red Hat Enterprise Linux server 9.7 x64
Red Hat Enterprise Linux server 10.0 x64
Red Hat Enterprise Linux server 10.1 x64
SUSE Linux Enterprise server 15 SP6
SUSE Linux Enterprise server 15 SP7
SUSE Linux Enterprise server 16
Ubuntu 22.04 LTS x64
Ubuntu 24.04 LTS x64
Citrix Hypervisor 8.2 LTSR CU1
XenServer 8.4
VMware ESXi 8.0 Update 3e
VMware ESXi 9.0
VMware ESXi 9.0.1
VMware ESXi 9.0.2
Chipset
System on Chip
Memory
32 x DIMMs
12-channel DDR5 RDIMM
Up to 5200 MT/s (1DPC), 4400 MT/s (1R 2DPC)
LAN
6 x LP PCIe Gen5 x16 slots:
- Options for NVIDIA ConnectX ®-8 / ConnectX®-7)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port

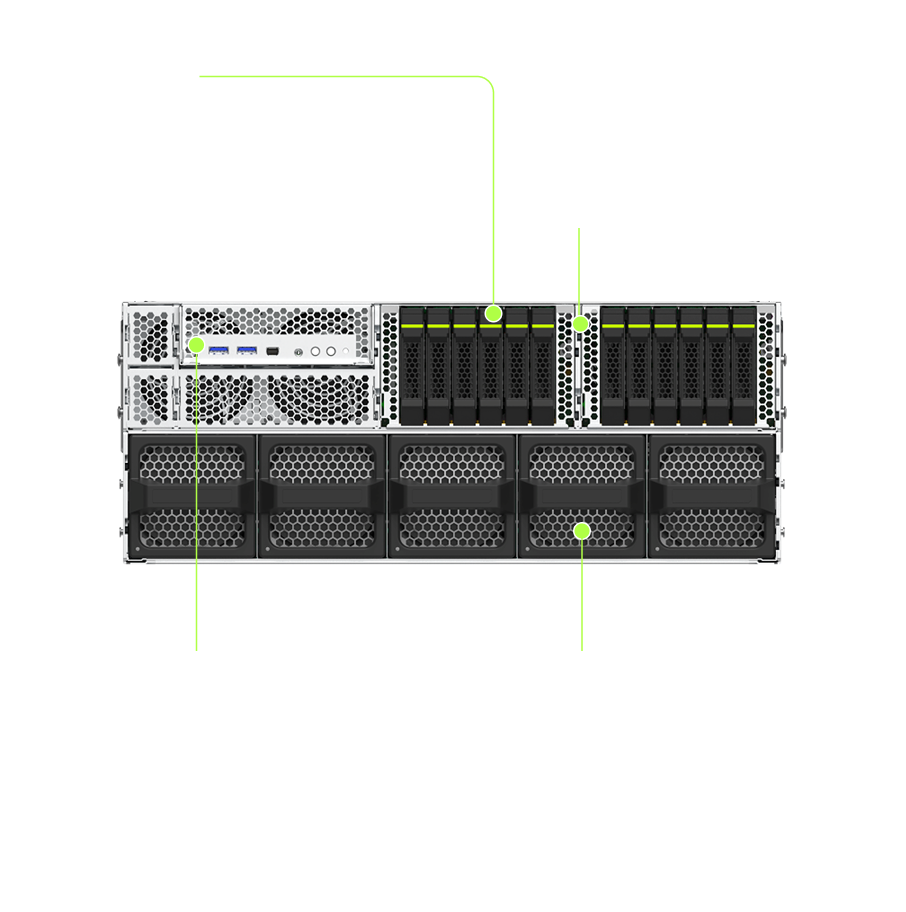

Storage
Front hot-swap:
12 x 2.5" Gen5 NVMe*
Internal M.2:
1 x M.2 (2280), PCIe Gen3 x4
*RAID add-in card is required to support RAID functionality.
RAID
Requires RAID add-in cards
Onboard VROC key headers
Security modules
TPM 2.0
I/O ports
Front:
2 x USB 3.2 Gen1
1 x Mini DisplayPort
Rear:
1 x USB 3.2 Gen1
1 x Mini DisplayPort
1 x MLAN
1 x Micro USB port (debug port)

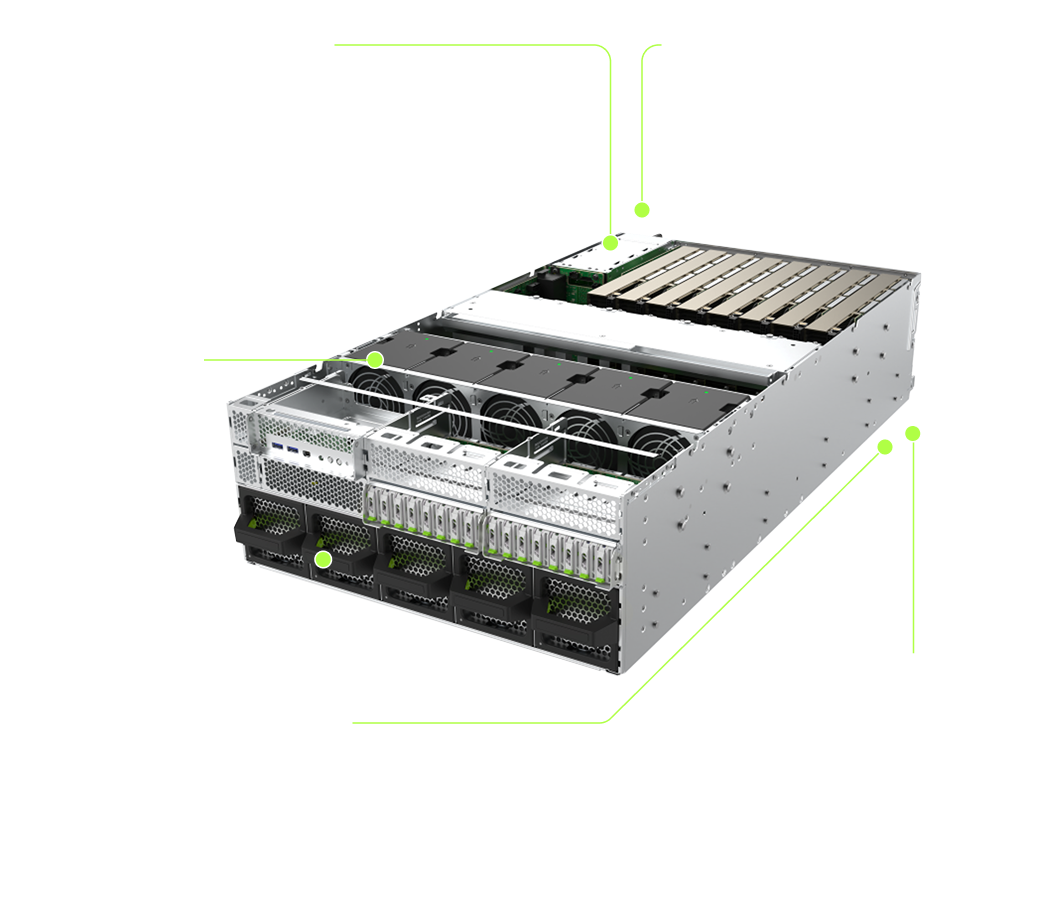

PCIe expansion slots
Front:
8 x FHFL PCIe Gen5 x16 slots for GPUs (with PCIe switches)
Front:
6 x LP PCIe Gen5 x16 slots (with PCIe switches)
*The system supports 8 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 4-GPU sets, each with a 4- way NVLink bridge.
*The system supports 8 x RTX™ PRO 6000 Blackwell Server Edition GPUs at 25°C ambient.
Power supply
3+1 3200W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V
*The system power supply requires C19 power cord.
System management
ASPEED® AST2600 Baseboard Management Controller
KERNO Management Console web interface
System fans
10 x 80x80 mm
Operating properties
Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
Packaging content
1 x 4U chassis
1 x L-shape rail kit
4 x C19 power cord
Warranty
3- to 5-year limited warranty
Your Customer Support Options
| Cruise | Performance | Full Throttle | |
|---|---|---|---|
| The incident reaction time (maximum priority) | within 4 hours | within 2 hours | within 1 hour |
| Support line request resolution | 9x5 | 24x7 | 24x7 |
| Self-service request registration 24 x 7 x 365 | |||
| Omnichannel support: call-center, e-mail, self-service portal | |||
| Real-time request status monitoring | |||
| Spare parts for replacement | |||
| Dedicated Service Manager | |||
| Reports | 2 times a year | quaterly | |
| Updates installation | remote | ||
| Root-cause analysis for critical incidents | |||
| Fixed recovery time option | |||
| Remote monitoring |
Professional Support Services
Our customer support team is happy to share further details about our custom support services with you.
Datasheet
Kerno UQLEAD K03-42A0 overview
5th Generation AMD EPYC™ Processors for SP5 Socket
This top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization.
NVIDIA RTX™ PRO 6000 Blackwell Server Edition
The ultimate data center GPU for AI and visual computing, delivering breakthrough acceleration for the most demanding enterprise workloads, from agentic and physical AI to scientific computing, graphics, and video applications.
