Datasheet

Universal Server

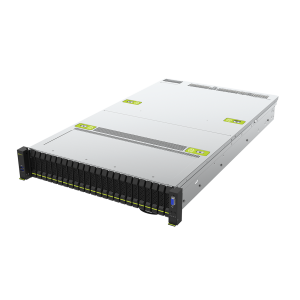

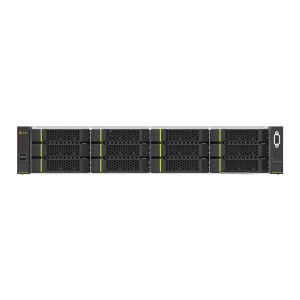

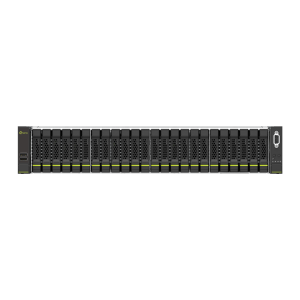

OKAM K01-22A0

Workloads

Storage-intensive applications Large databases VDI HCI HPC

CPUs

AMD EPYC™ 9005 Series Processors

GPUs & Networking

NVIDIA L40S NVIDIA L4 NVIDIA H100 NVL NVIDIA RTX™ 6000/5000/4000 Ada

Contact our sales team

Overview

Specifications

Support

Downloads

Feature

Specifications

Dimensions

2U (W438 x H87x D770 mm)

CPU

AMD EPYC™ 9005 Series processors

Dual processor, cTDP up to 400W:

The EPYC 9005 series processors with a TDP of 400W are supported only under ambient temperatures of 25°C

Operating system compatibility

Windows Server 2019
Windows Server 2022
Windows Server 2025
Red Hat Enterprise Linux server 9.6 x64
Red Hat Enterprise Linux server 9.7 x64
Red Hat Enterprise Linux server 10.0 x64
Red Hat Enterprise Linux server 10.1 x64
SUSE Linux Enterprise server 15 SP6
SUSE Linux Enterprise server 15 SP7
SUSE Linux Enterprise server 16
Ubuntu 22.04 LTS x64
Ubuntu 24.04 LTS x64
Citrix Hypervisor 8.2 LTSR CU1
XenServer 8.4
VMware ESXi 8.0 Update 3e
VMware ESXi 9.0
VMware ESXi 9.0.1
VMware ESXi 9.0.2

Chipset

System on Chip

Memory

24 x DIMMs
12-channel DDR5 RDIMM
Up to 6400 MT/s

LAN

1 x 10/100/1000 Mbps Management LAN
1/2/4 Port OCP NIC support

Video

Integrated in ASPEED® AST2600:

1 x Mini DisplayPort
1 x VGA port

Storage

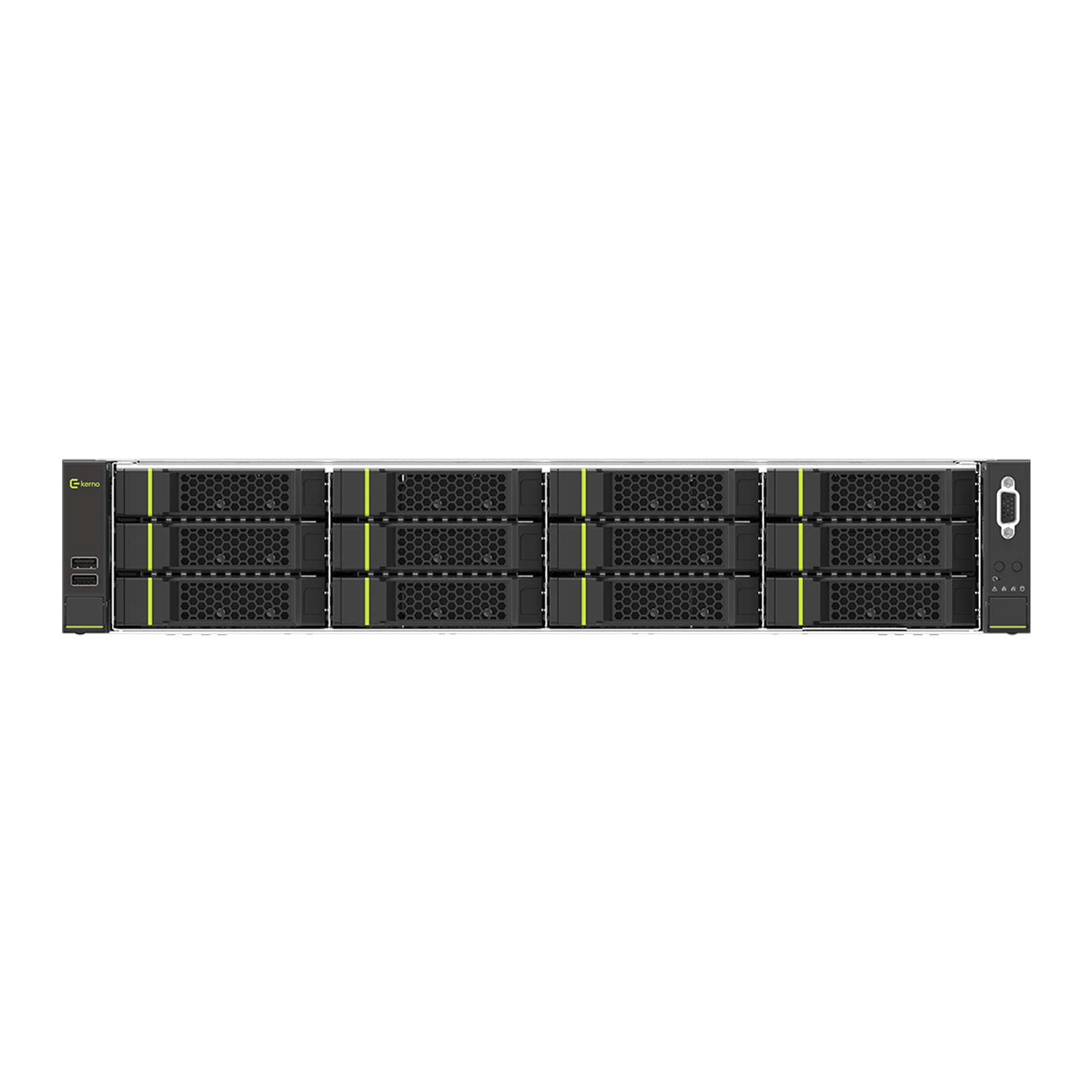

Front hot-swap:

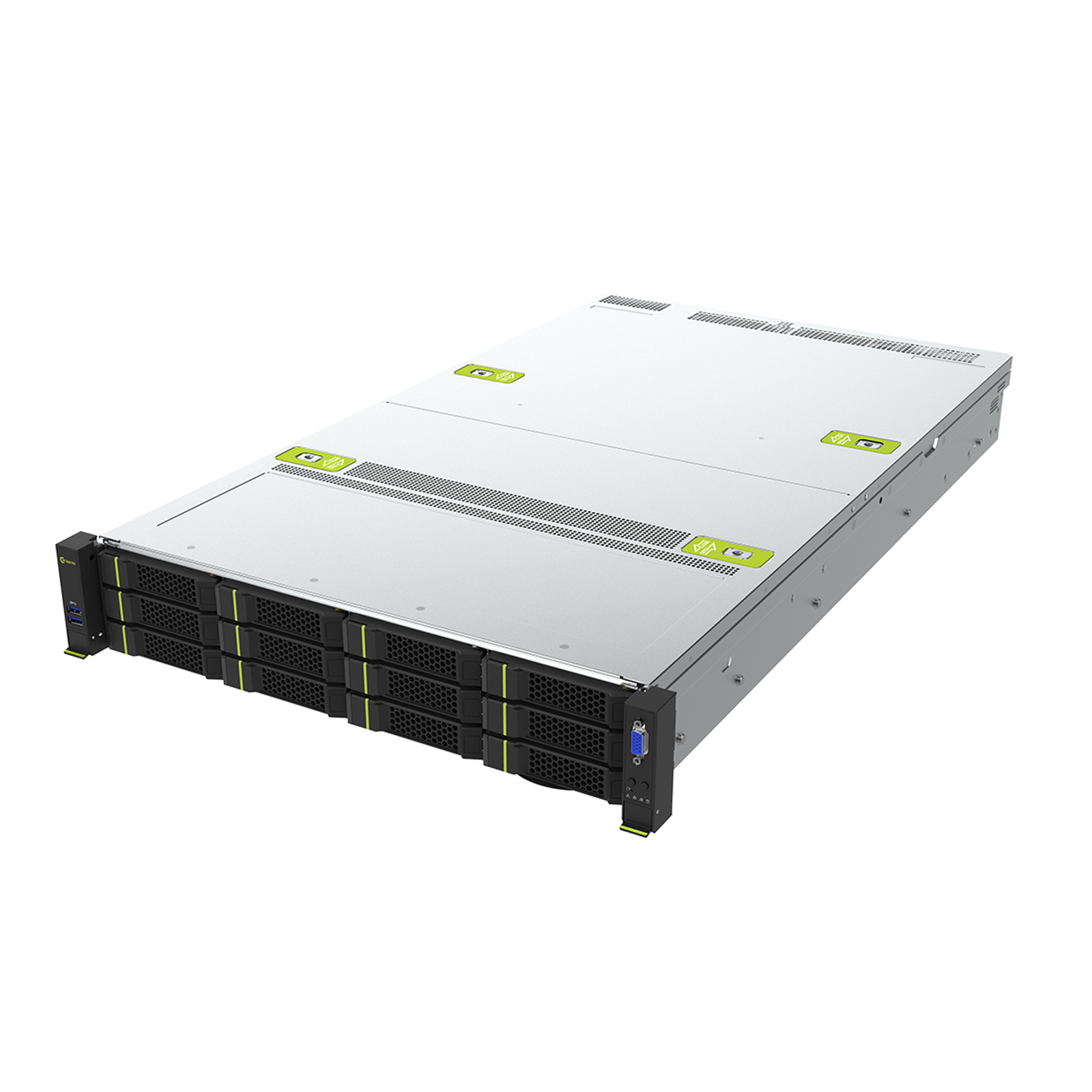

12 x 3.5"/2.5" Gen5 NVMe / SATA / SAS-4*

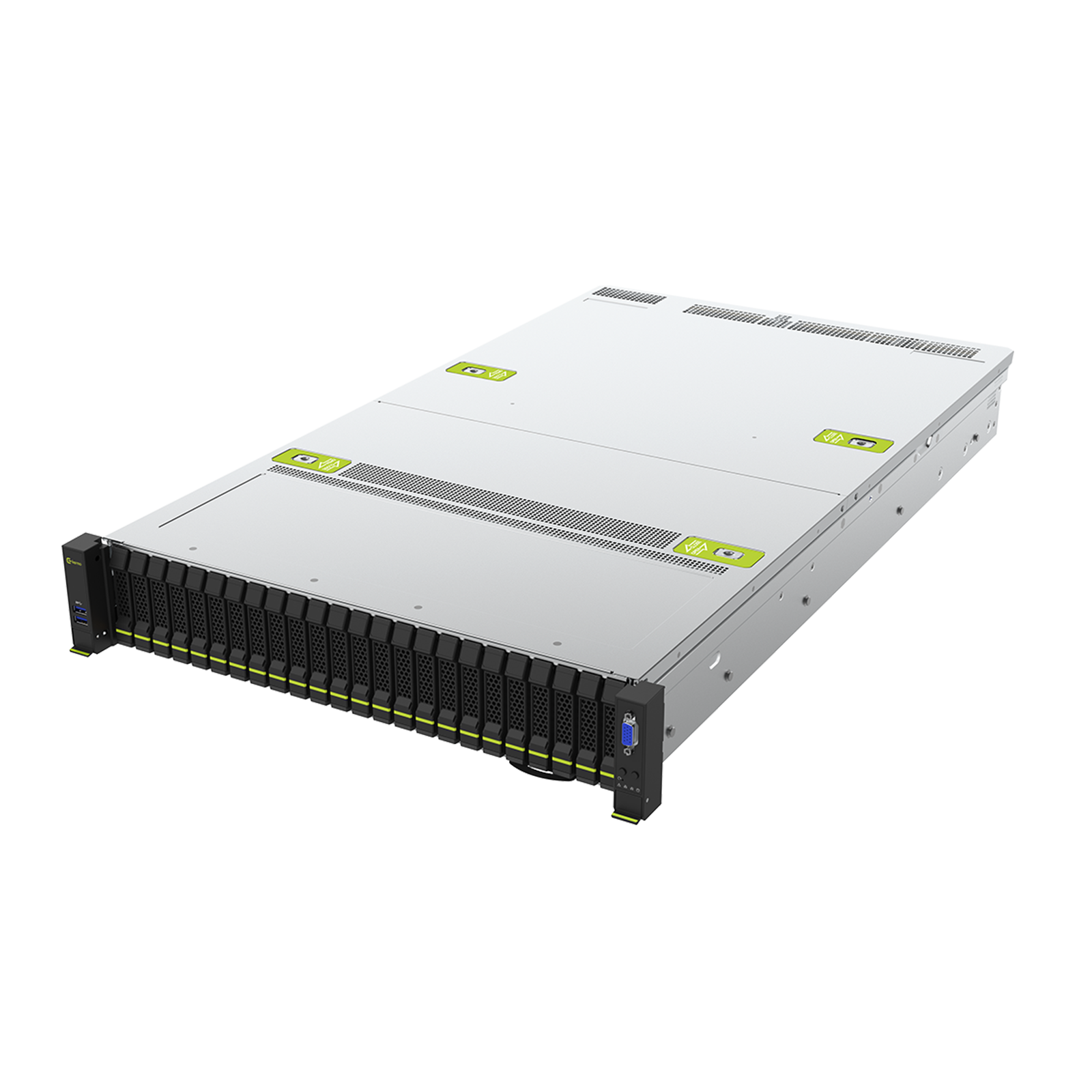

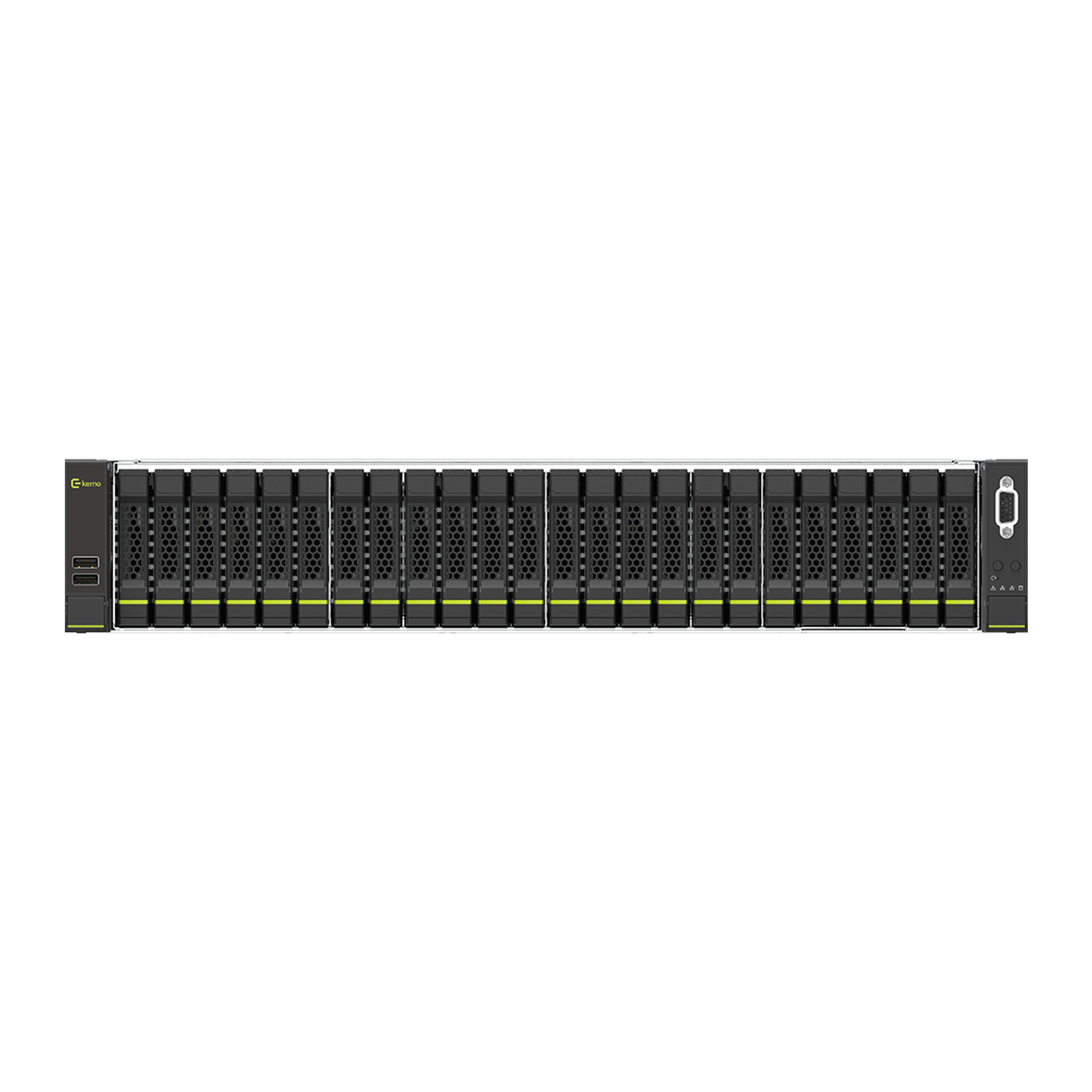

or 24 x 2.5" Gen5 NVMe / SATA / SAS-4*

Rear hot-swap:
2 x 2.5" NVMe / SATA / SAS-4*

*Storage card is required to support SATA and SAS drives

RAID

Requires RAID add-in cards

I/O ports

Front:
1 x USB 3.2 Gen1, 1 x USB 2.0, 1 x VGA port

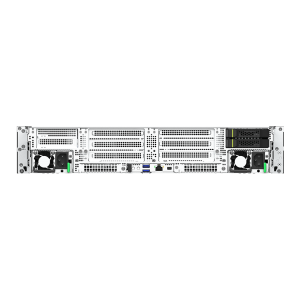

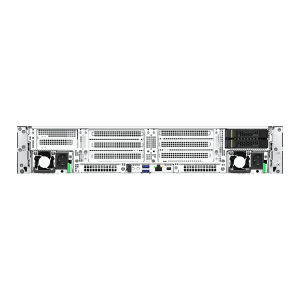

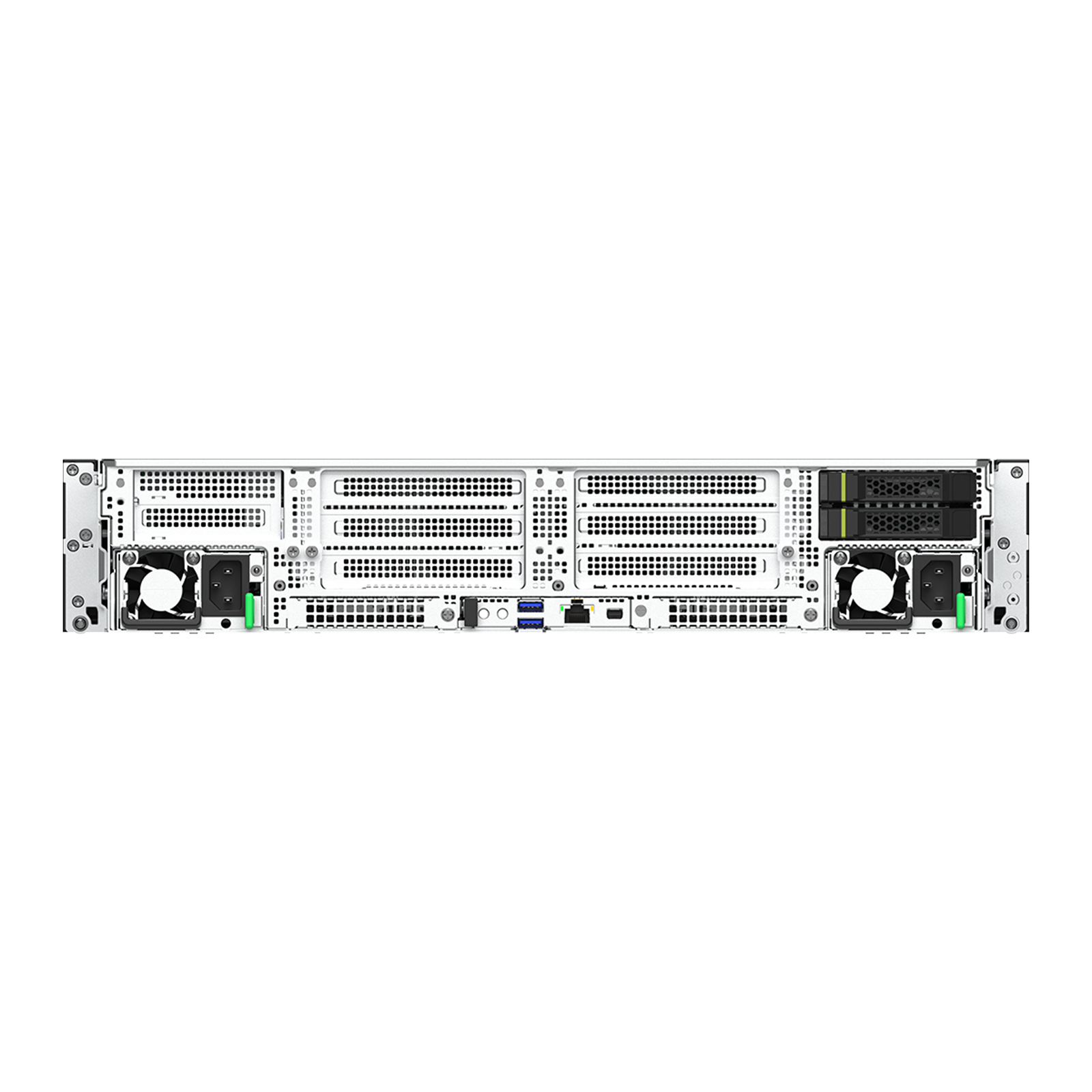

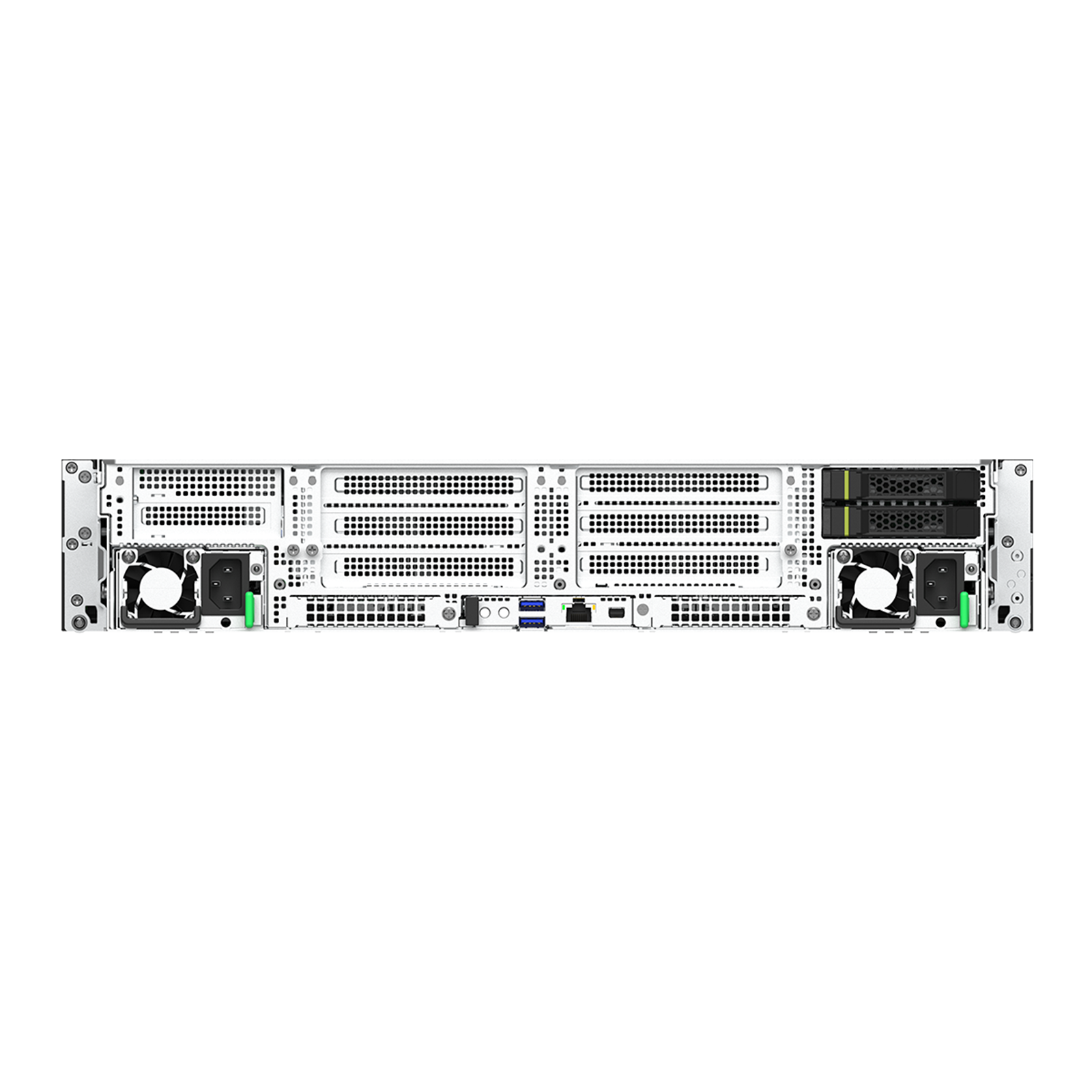

Rear:
2 x USB 3.2 Gen1, 1 x Mini DisplayPort, 1 x MLAN

PCIe expansion slots

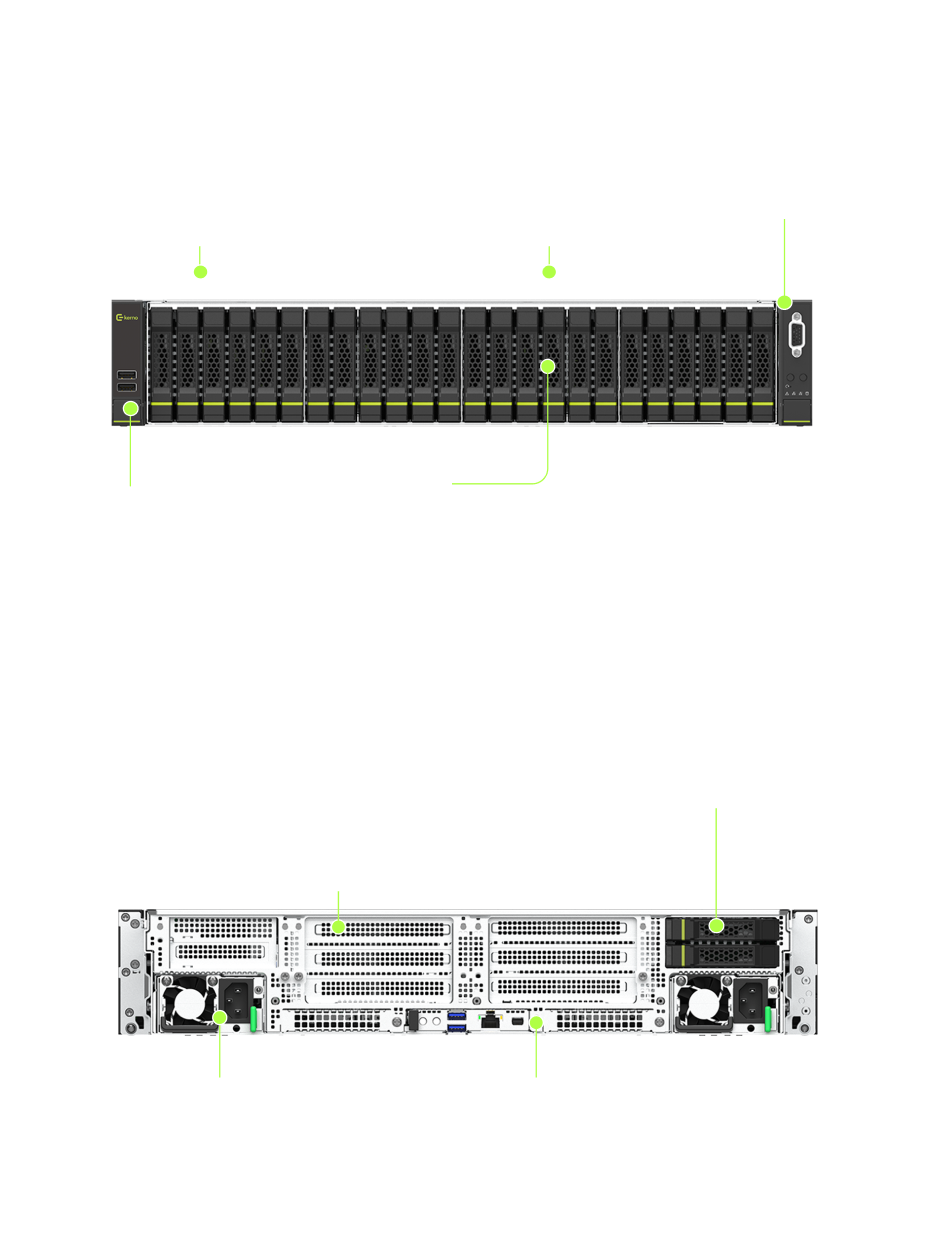

General:
2 x FHFL PCIe Gen5 x16 slots
2 x FHFL PCIe Gen5 x8 slots
2 x FHHL PCIe Gen5 x8 slots
1 x HHHL PCIe Gen5 x8 slot
1 x OCP 3.0 PCIe Gen5 x16 slot
1 x OCP NIC 3.0 PCIe Gen5 x8 slot

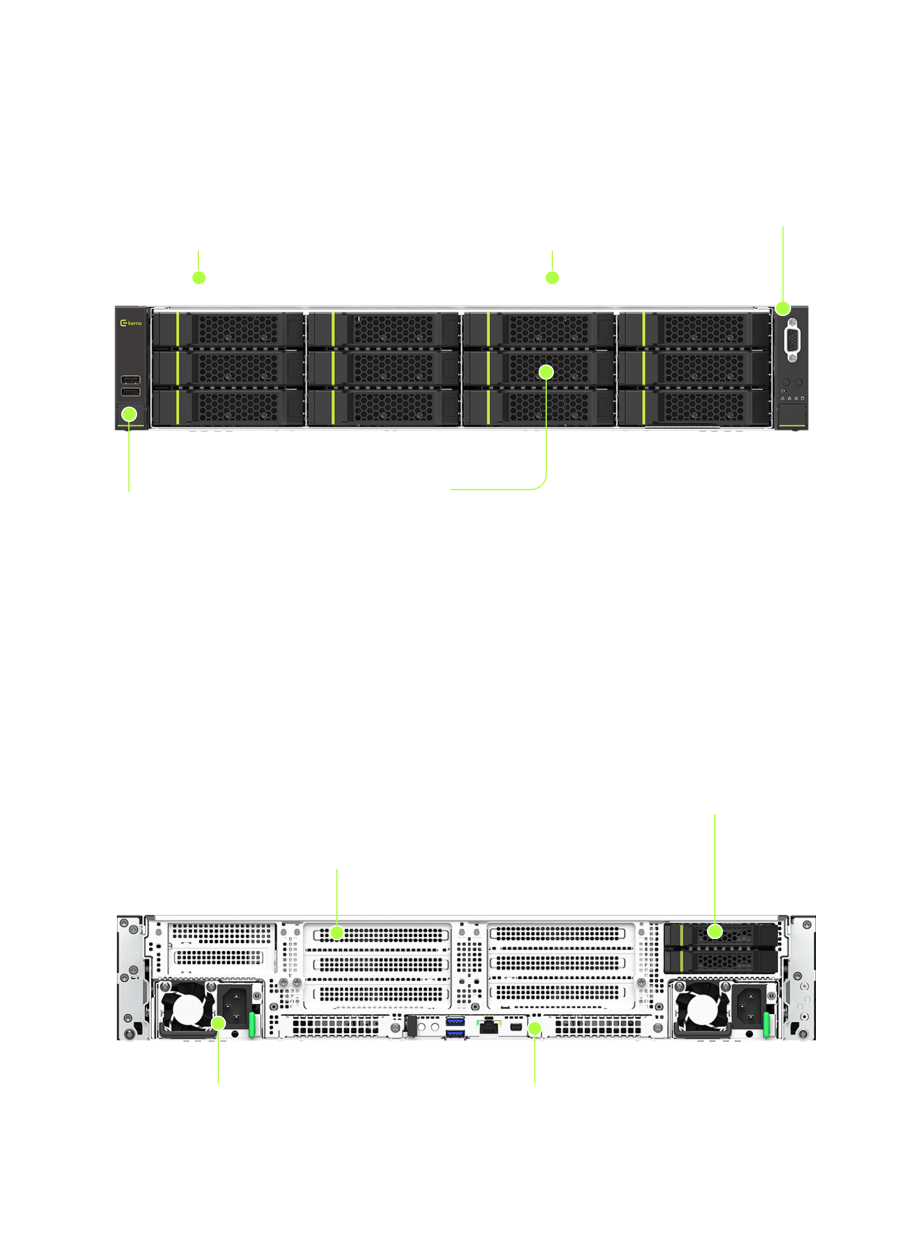

GPU:
2 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHHL PCIe Gen5 x16 slots
1 x HHHL PCIe Gen5 x8 slot
1 x OCP 3.0 PCIe Gen5 x16 slot
1 x OCP NIC 3.0 PCIe Gen5 x8 slot

Security modules

TPM 2.0

Power supply

1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V

System management

ASPEED® AST2600 Baseboard Management Controller

KERNO Management Console (AMI MegaRAC SP-X)

System fans

6 x 60x60x56 mm

Operating properties

Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)

Packaging content

1 x 2U chassis
1 x Mini DisplayPort to D-Sub cable
1 x 2-section rail kit

Warranty

3- to 5-year limited warranty

Your Customer Support Options

	Cruise	Performance	Full Throttle
The incident reaction time (maximum priority)	within 4 hours	within 2 hours	within 1 hour
Support line request resolution	9x5	24x7	24x7
Self-service request registration 24 x 7 x 365
Omnichannel support: call-center, e-mail, self-service portal
Real-time request status monitoring
Spare parts for replacement
Dedicated Service Manager
Reports		2 times a year	quaterly
Updates installation		remote
Root-cause analysis for critical incidents
Fixed recovery time option
Remote monitoring

View all options

Professional Support Services

Our customer support team is happy to share further details about our custom support services with you.

Request details

Datasheet

Datasheet OKAM K01-22A0

June 2026 • Version 04

Download

Kerno OKAM K01-22A0 overview

Ready

5th Generation AMD EPYC™ Processors for SP5 Socket

This top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization.

3nm

architecure

Up to 192

CPU cores

Up to 512MB

L3 cache

channels

Up to 160

PCIe lanes

CXL 2.0

support
