OKAM K01-2220

2U (W438 x H87x D770 mm)

Intel^® Xeon^® 6 Processors:

• Intel ^® Xeon^® 6700E Series processors
• Intel ^® Xeon^® 6700P Series processors
• Intel^® Xeon^® 6500P Series processors

Dual processors, TDP up to 350W

System on Chip

32 x DIMMs
8-channel DDR5 RDIMM
Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)

*MRDIMMs are only supported with Intel^® Xeon^® 6 processors with P-cores and in a 1DPC configuration

1/2/4 Ports OCP 3.0 LAN support
1 x 10/100/1000 Mbps Management LAN

ASPEED^® AST2600:

• 1 x Mini DisplayPort
• 1 x VGA port

Front hot-swap:
24 x 2.5" Gen5 NVMe / SATA / SAS-4*
or
12 x 3.5"/2.5" Gen5 NVMe / SATA / SAS-4*

Rear hot-swap:
2 x 2.5" NVMe / SATA / SAS-4*

Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4

*Storage card is required to support SATA and SAS drives

Requires RAID add-in cards
Onboard VROC key header

Front:
2 x USB 3.2 Gen1, 1 x VGA port

Rear:
2 x USB 3.2 Gen1, 1 x Mini DisplayPort, 2 x RJ45, 1 x MLAN

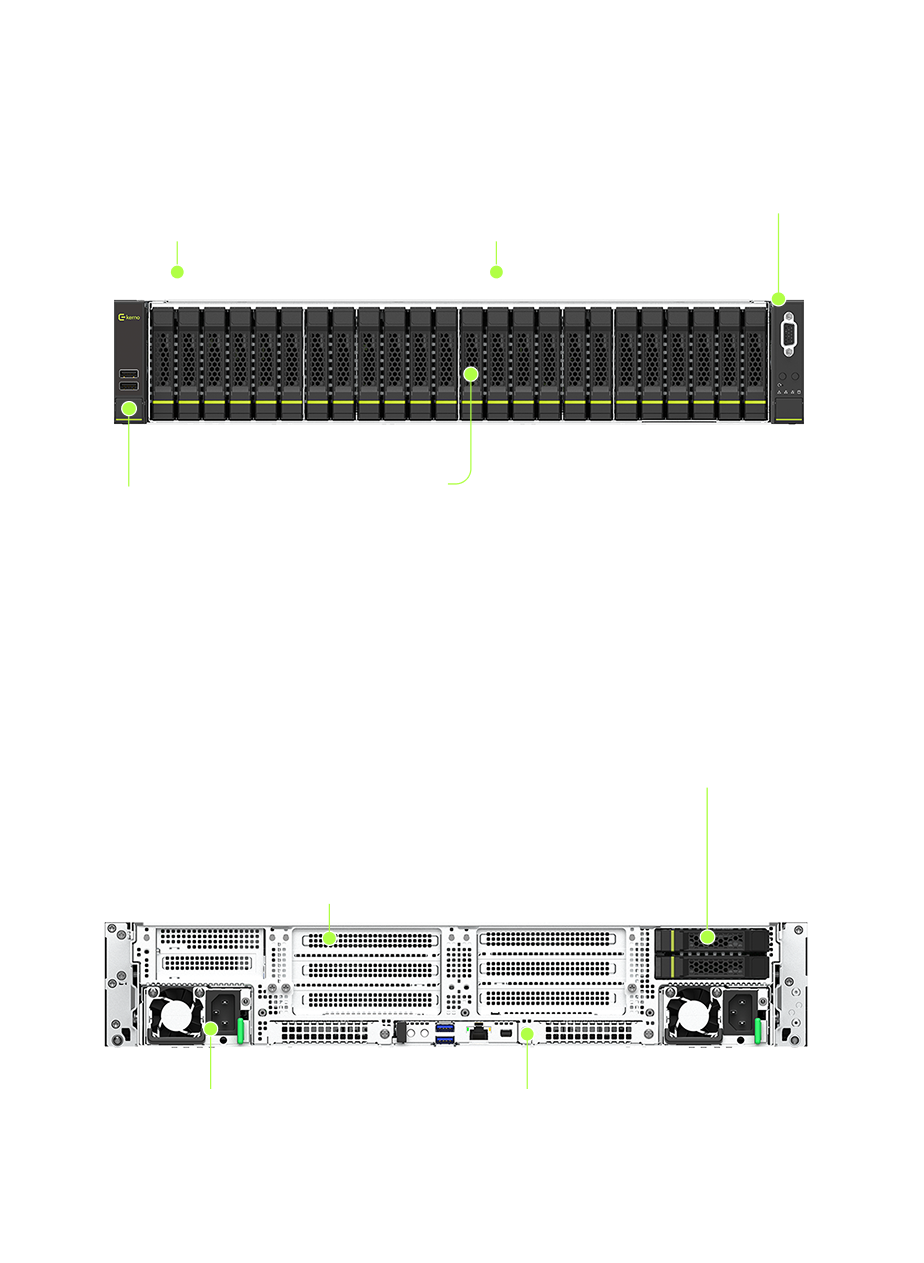

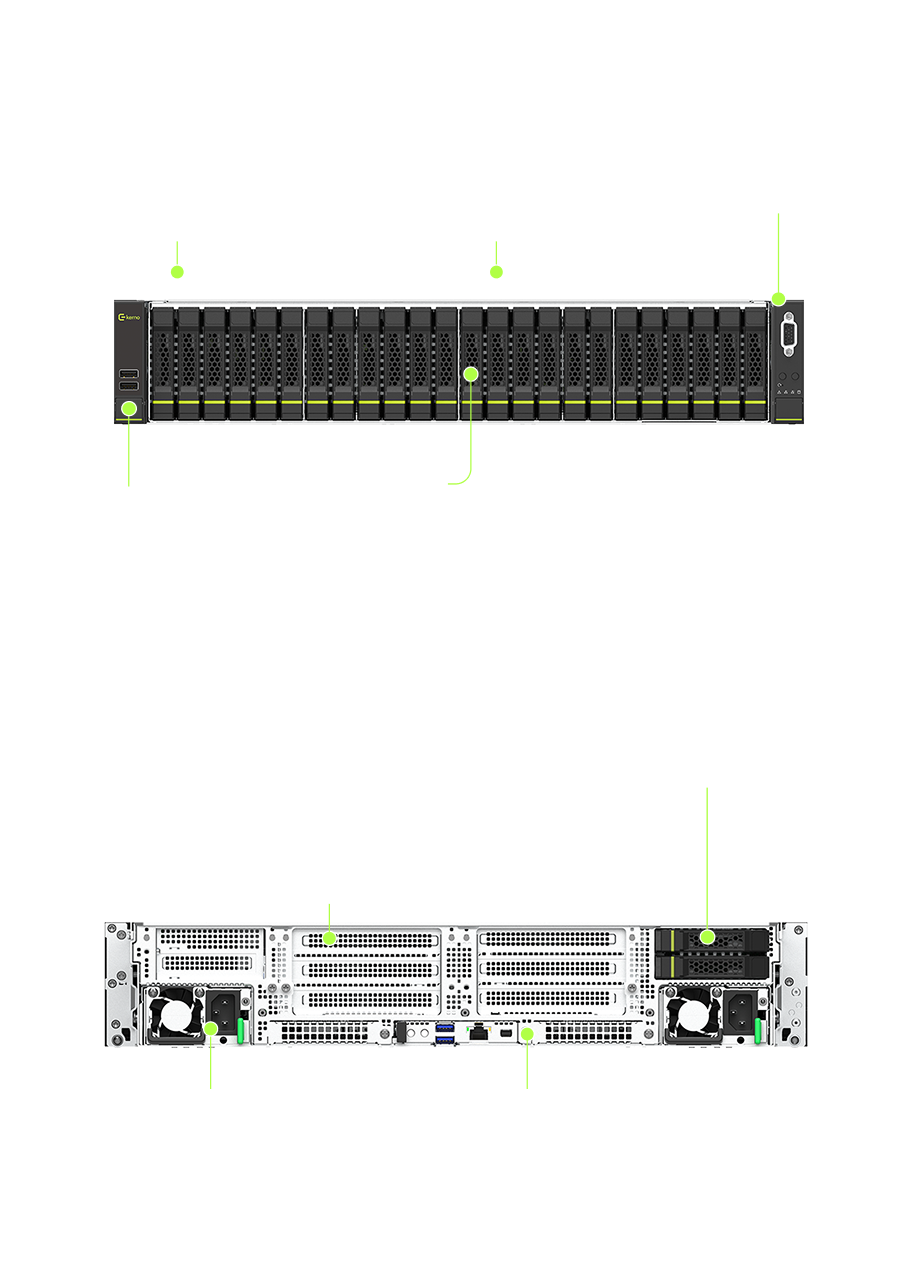

General:
2 x FHFL PCIe Gen5 x16 slots
2 x FHFL PCIe Gen5 x8 slots
2 x FHHL PCIe Gen5 x8 slots
1 x HHHL PCIe Gen5 x8 slot
1 x OCP 3.0 Gen5 x16 slot
1 x OCP 3.0 PCIe Gen5 x8 slot

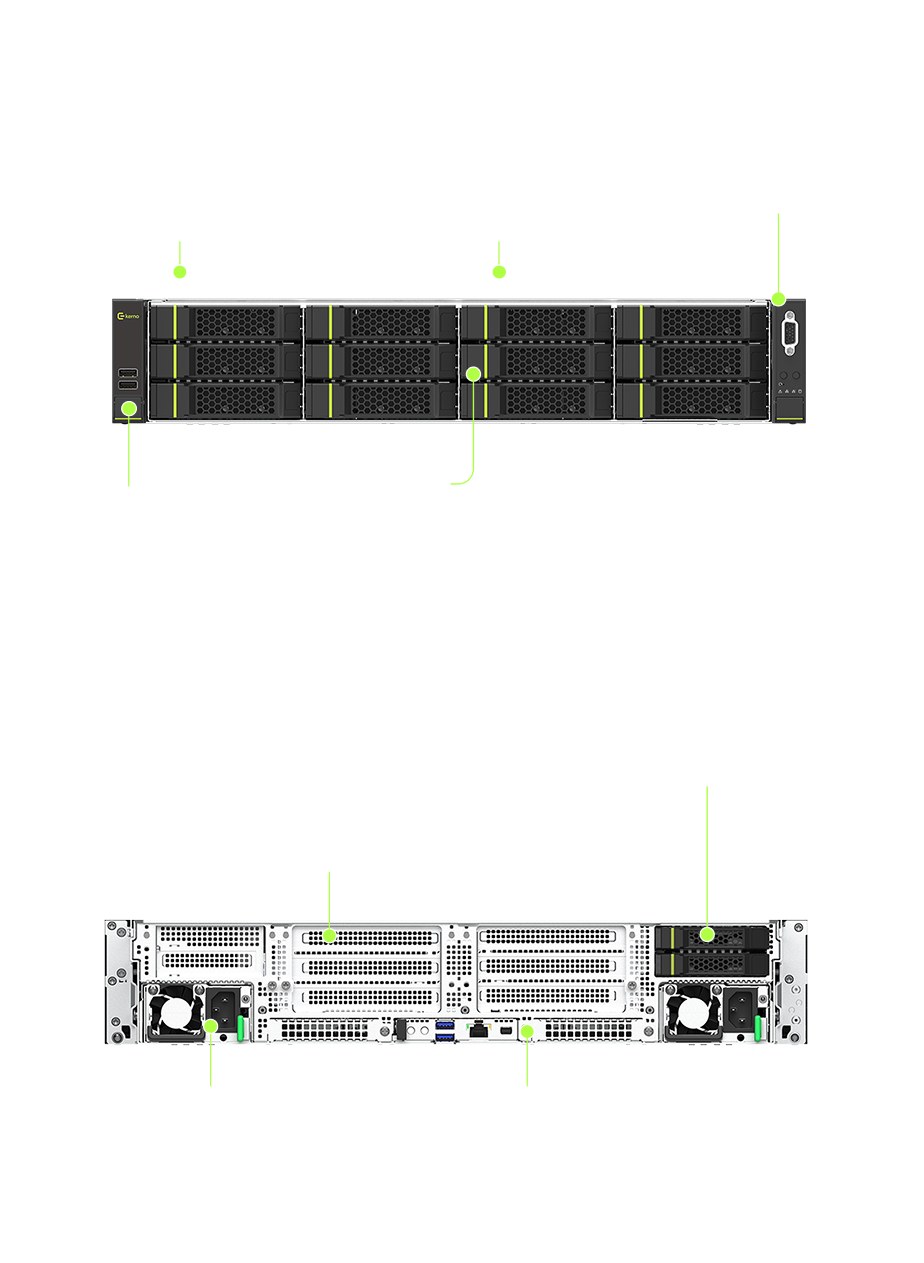

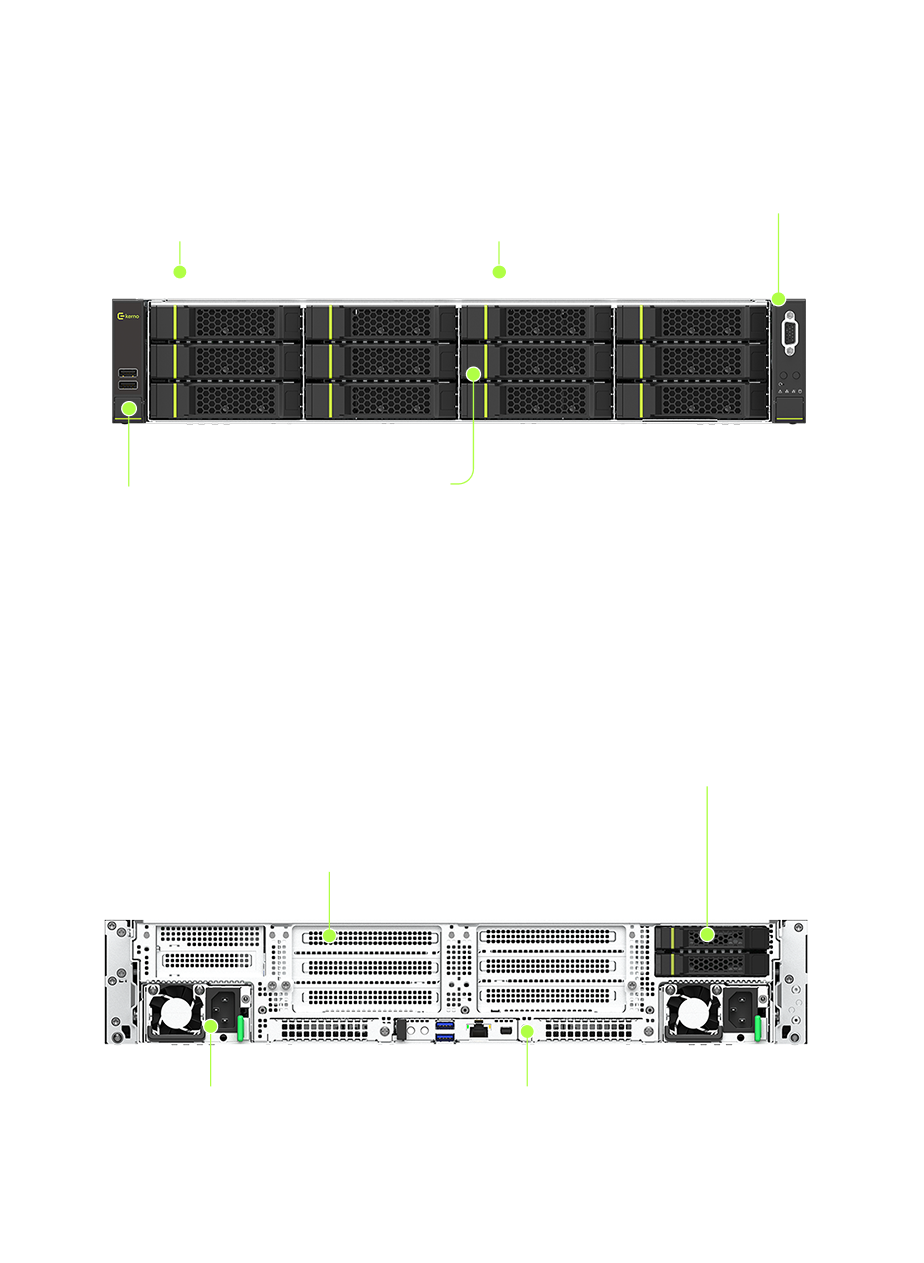

GPU:
2 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHHL PCIe Gen5 x16 slots
1 x HHHL PCIe Gen5 x8 slot
1 x OCP 3.0 PCIe Gen5 x16 slot support NCSI
1 x OCP 3.0 PCIe Gen5 x8 slot

TPM 2.0
PFR 3.0 (optional)

Dual 2000W 80 PLUS Titanium redundant power supply
AC Input: 100-240V

ASPEED^® AST2600 Baseboard Management Controller

KERNO Management Console (AMI MegaRAC SP-X)

6 x 60x60x56 mm

Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)

1 x 2U chassis
1 x Mini DisplayPort to D-Sub cable
1 x 2-section rail kit

3- to 5-year limited warranty
